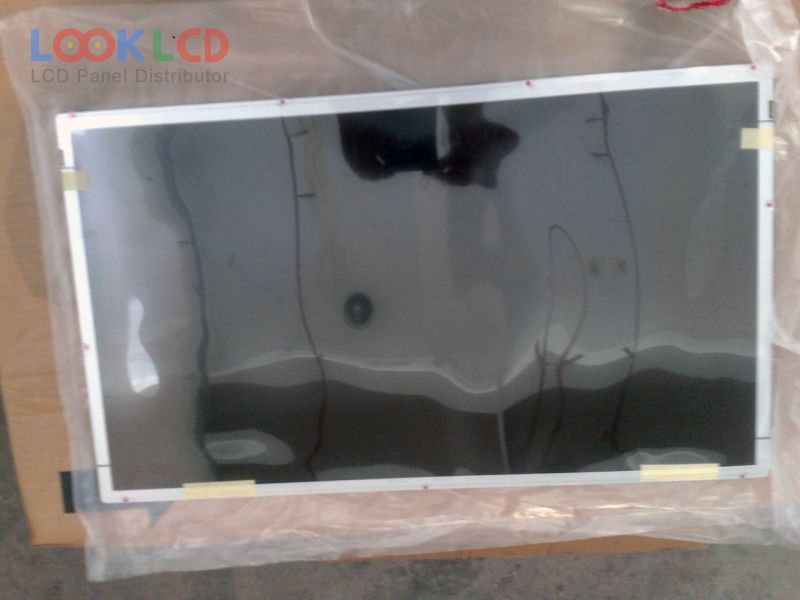

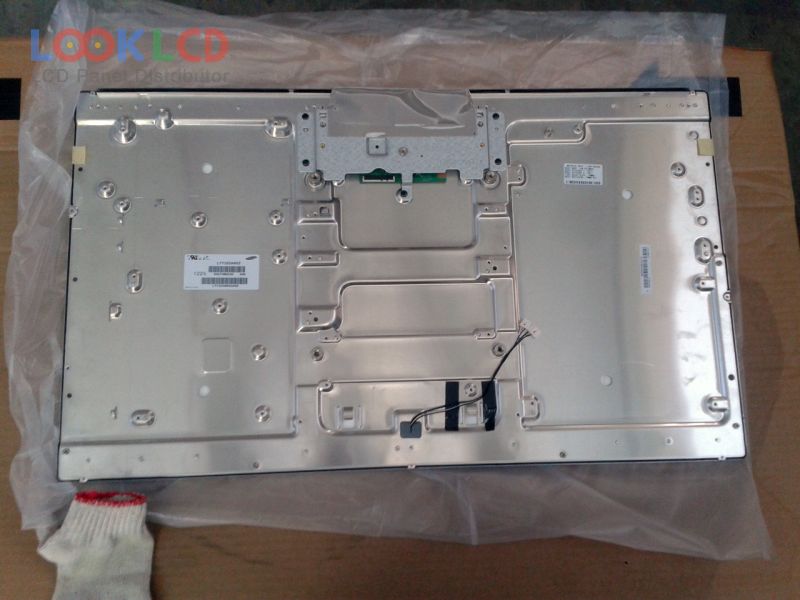

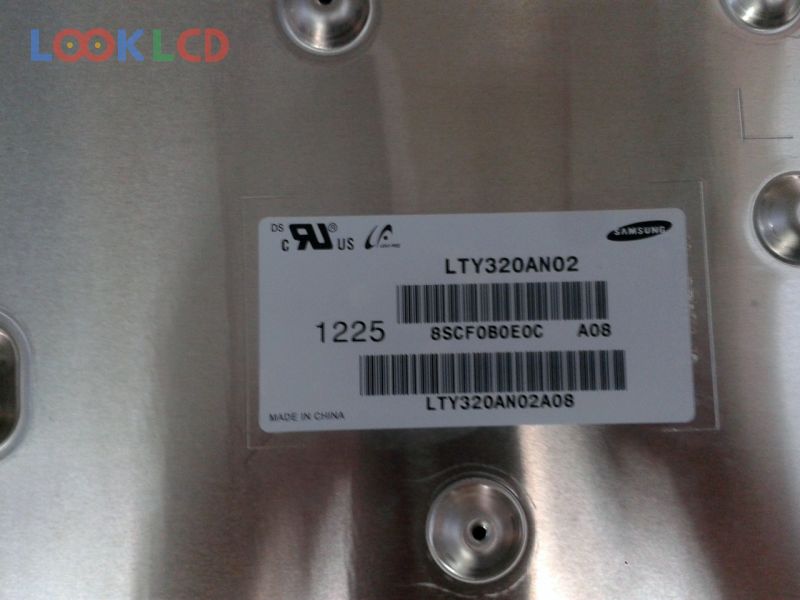

| Part Number | LTY320AN02 |
| Mark | Samsung |
| Gréisst | 31.5 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 5000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTY320AN02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 31.5 inch |
| Resolutioun | 1366×768(RGB) , WXGA |
| Display Modus | PVA, Normally Black, Transmissive |
| aktiv Beräich | 697.685×392.256 mm |
| skizzéieren | 733.6×433 mm |
| Uewerfläch | Antiglare (Haze 5.5%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 5000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 15/8 (Typ.)(Tr/Td); 20 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
| BRS315H2 | 31.5 | 1920×1080 | |
| LC320DXE-FGA3 | LG Display | 31.5 | 1366×768 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| LTI320AA02 | Samsung | 31.5 | 1366×768 |
| LTY320AN01 | Samsung | 31.5 | 1366×768 |
| LTY320AN02 | Samsung | 31.5 | 1366×768 |
| LTY320AP04 | Samsung | 31.5 | 1366×768 |
| LTY320HN03 | Samsung | 31.5 | 1920×1080 |
| T315HW07 V6 | AUO | 31.5 | 1920×1080 |
| T320HVN02.0 CELL | AUO | 31.5 | 1920×1080 |
| LC320WXE-SBV2 | LG Display | 31.5 | 1366×768 |
| LC550EUN-SFM1 | LG Display | 55 | 1920×1080 |
| LTA460HQ20-C01 | Samsung | 46 | 1920×1080 |
| LTA750HQ01 | Samsung | 75 | 1920×1080 |
| LTY460HH-LH2 | Samsung | 46 | 1920×1080 |
| T260XW03 V2 | AUO | 26.0 | 1366×768 |
| T315XW02 VM | AUO | 31.5 | 1366×768 |
| T546HW01 V0 | AUO | 55 | 1920×1080 |
| V470H1-L03 | Innolux | 47 | 1920×1080 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
