| Part Number | V470H1-L03 |
| Mark | Innolux |
| Gréisst | 47 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 2000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |

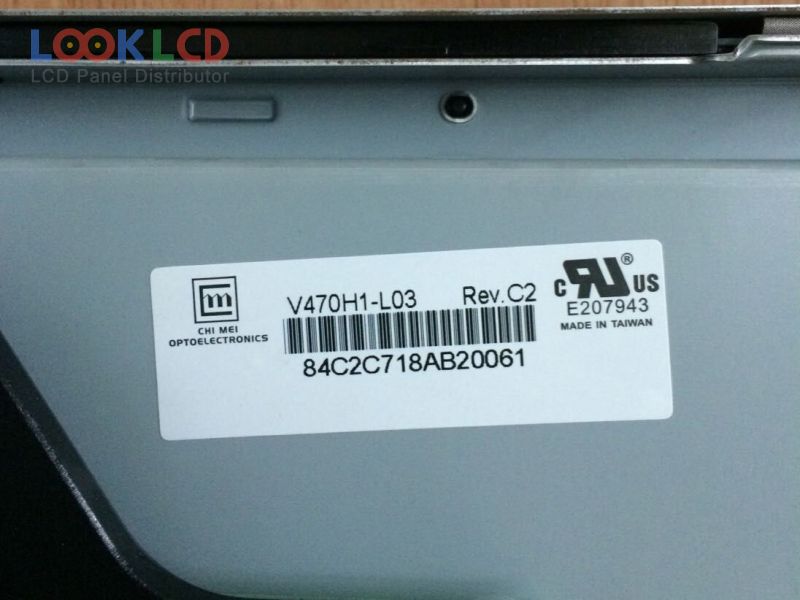

| Panel Modell | V470H1-L03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 47 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | Super MVA, Normally Black, Transmissive |
| aktiv Beräich | 1039.68×584.82 mm |
| skizzéieren | 1096×640 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 6.5 (Typ.)(G to G) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 20 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
| HK185LEDM-CH25H | Other | 18.5 | 1366×768 |
| HT260WX2-101 | BOE | 26.0 | 1366×768 |
| LC370WXN-SBD1 | LG Display | 37 | 1366×768 |
| LC420DUN-SEU2 | LG Display | 42 | 1920×1080 |
| LC550EUH-KEF1 | LG Display | 55 | 1920×1080 |
| LTA320WT-LF1 | Samsung | 31.5 | 1366×768 |
| T315XW07 V2 | AUO | 31.5 | 1366×768 |
| T400XW01 V7 | AUO | 40 | 1366×768 |
| V315H4-LE3 | Innolux | 31.5 | 1920×1080 |
| V460H1-LS2 Rev.C7 | Innolux | 46 | 1920×1080 |
