| Part Number | LTN156FL02-L01 |
| Mark | Samsung |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM |
| Hellegkeet | 270 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN156FL02-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 3840RG(BW)×2160 , UHD |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 344.448×193.752 mm |
| skizzéieren | 359.5×223.8×3 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 270 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4S10PWLEDEmbedded (LED Driver) |

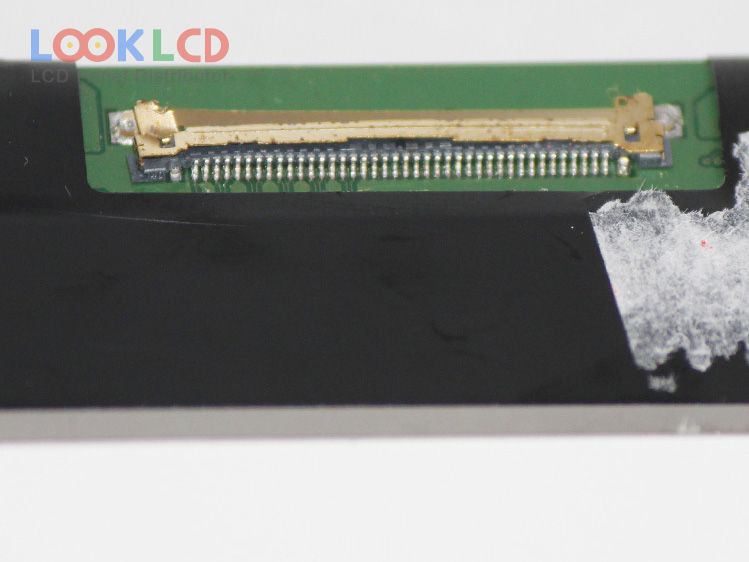

| Signal Interface | eDP (4 Lanes), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
