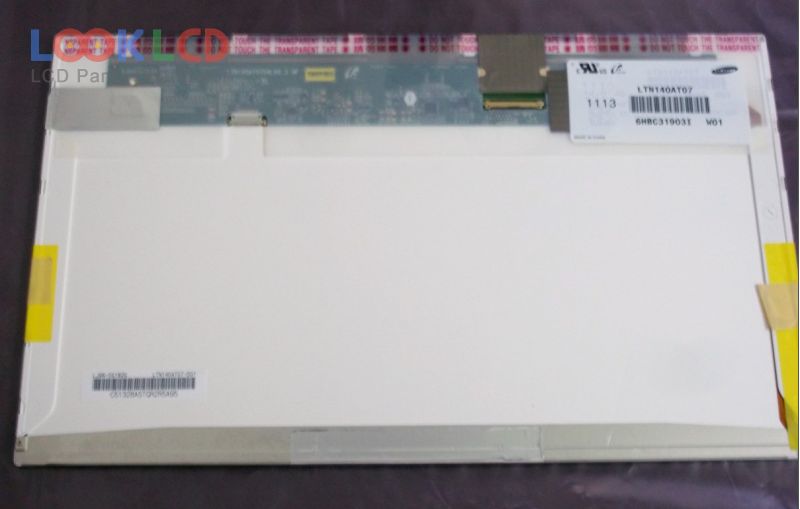

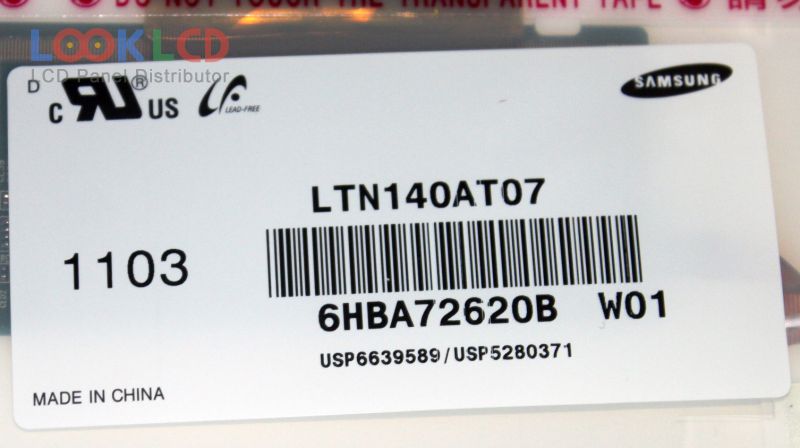

| Part Number | LTN140AT07-W01 |
| Mark | Samsung |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN140AT07-W01 30 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.399×173.952 mm |
| skizzéieren | 323.5×192×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Min.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S6PWLEDEmbedded (LED Driver) |

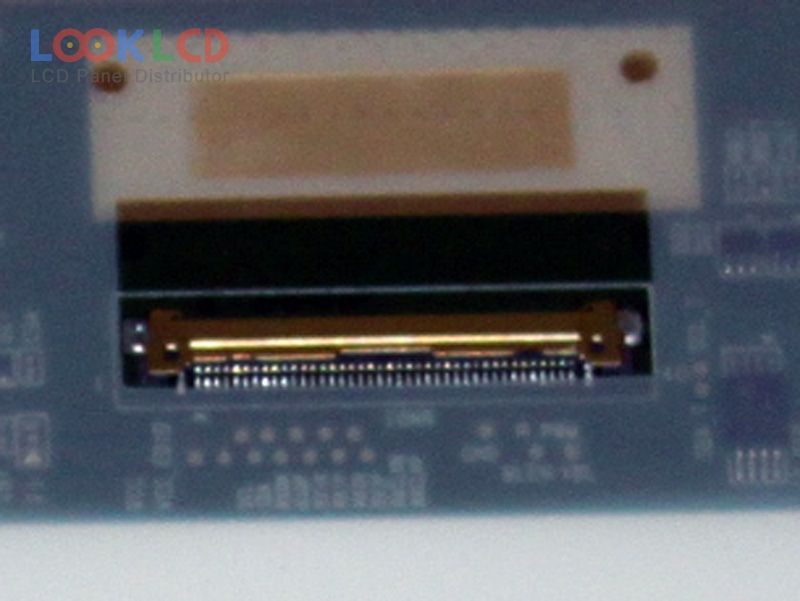

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LTN140AT06-A01 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-W01 | Samsung | 14.0 | 1366×768 |
| LTN140AT11-L02 | Samsung | 14.0 | 1366×768 |
| LTN140AT16-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT20-W05 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-802 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W02 | Samsung | 14.0 | 1366×768 |
| B121EW09 V0 | AUO | 12.1 | 1280×800 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LTN160AT04-N01 | Samsung | 16.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
