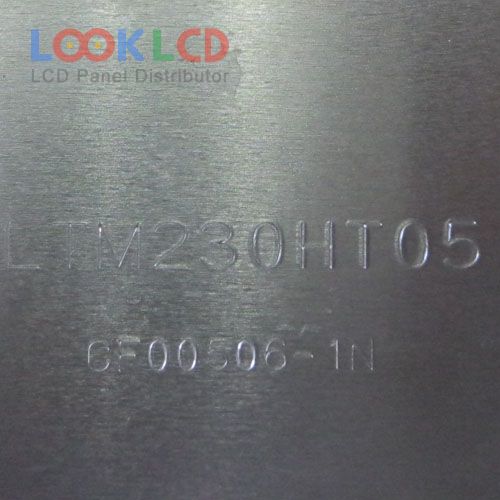

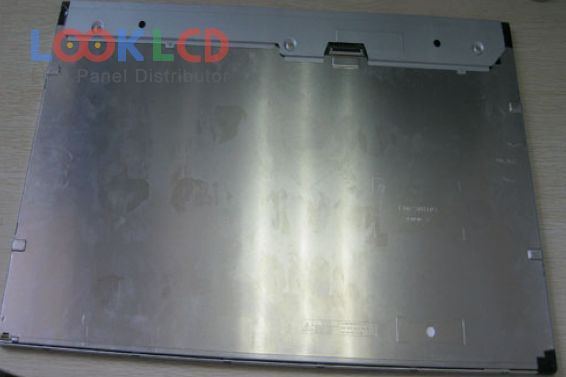

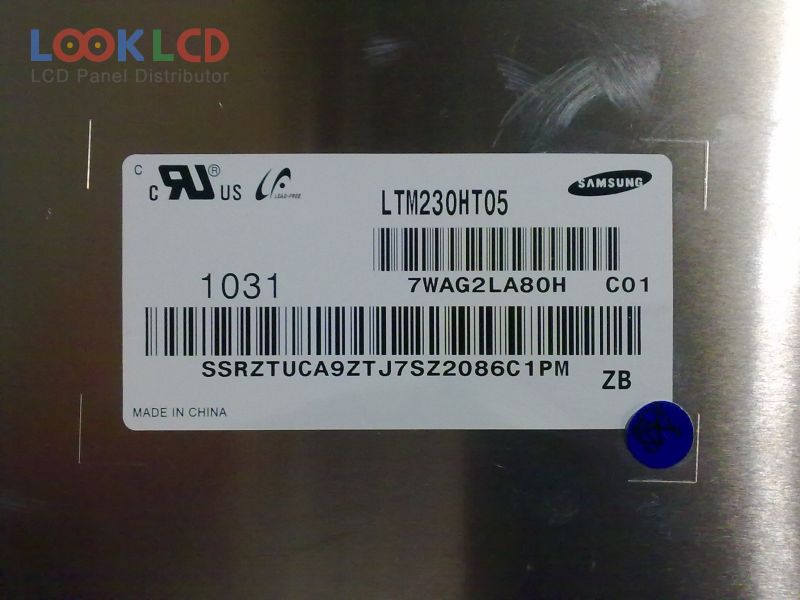

| Part Number | LTM230HT05 |
| Mark | Samsung |
| Gréisst | 23.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM230HT05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 23.0 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 509.76×286.74 mm |
| skizzéieren | 534×311.7×11.8 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 17S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
