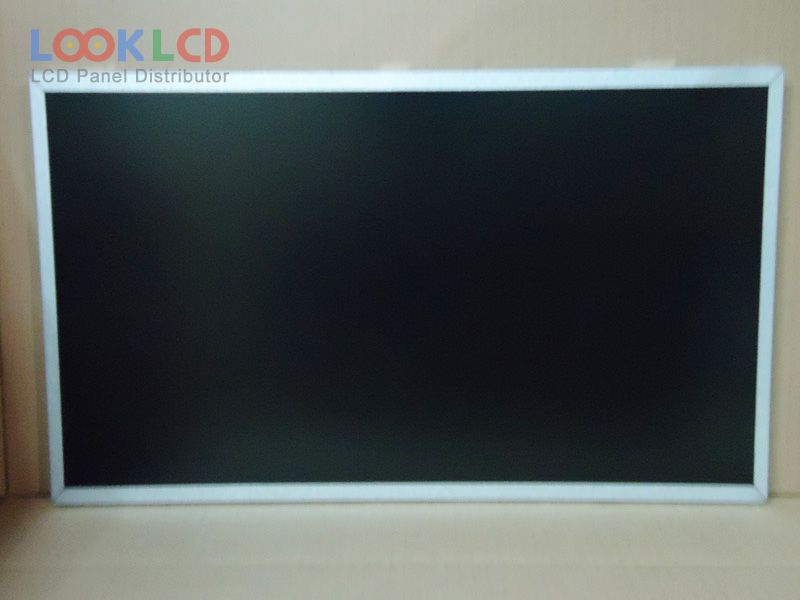

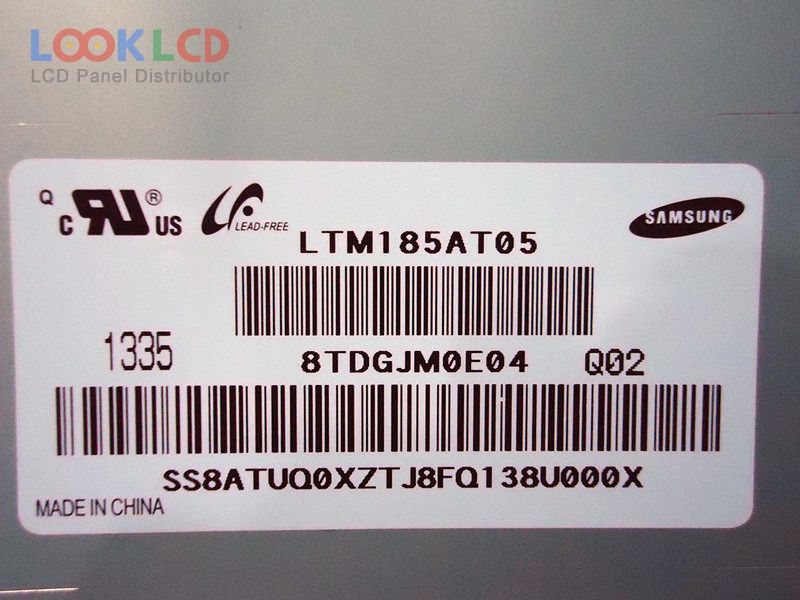

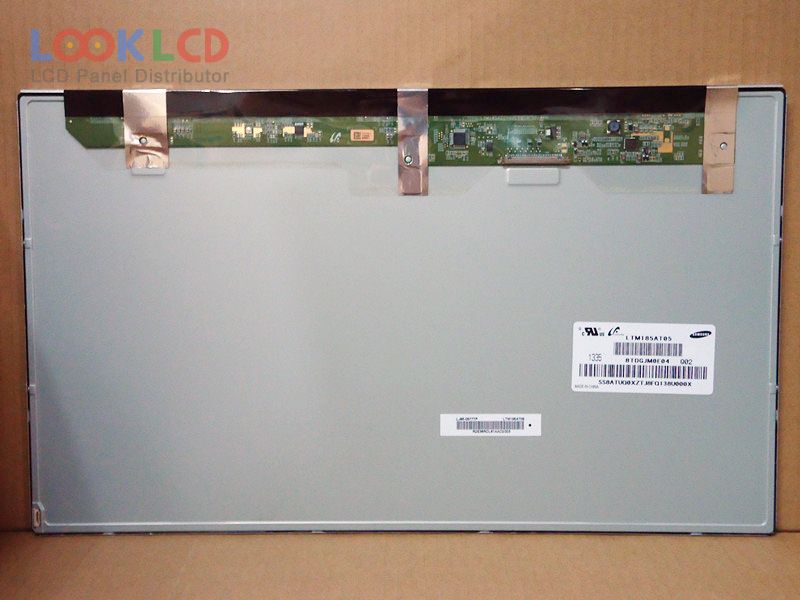

| Part Number | LTM185AT05 |
| Mark | Samsung |
| Gréisst | 18.5 |
| Applikatioun | DMPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM185AT05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 18.5 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 409.8×230.4 mm |
| skizzéieren | 430.37×254.6×1.6 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S3PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
