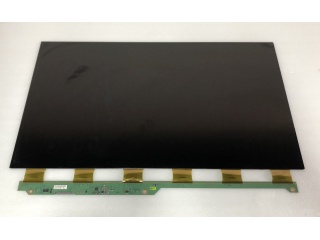

| Part Number | LSM270HP05-G01 |
| Mark | SAMSUNG |
| Gréisst | 27.0 |
| Applikatioun | Desktop Monitor |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LSM270HP05-G01 |
| Panel Gréisst | 27.0" |
| Panel Typ | a-Si TFT-LCD, CELL |
| Resolutioun | 1920(RGB)×1080, FHD, 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 597.888(W)×336.312(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 608.288(W)×348.037(H) ×1.16(D) mm |
| Uewerfläch | Antiglare (Haze 25%) |
| Hellegkeet | 0 cd/m² |
| Kontrast Verhältnis | 3000:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | SPVA, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 21 (Typ.)(G to G) |
| Glas Déift | 0.40+0.40 mm |
| transmissivitéit | 4.25% (Typ.)(with Polarizer) |
| weisen Faarwen | 16.7M 70% NTSC |
| Lampe Typ | No B/L |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Chauffeur ic | COFBuilt-in 6 source chips |
| Panel Gewiicht | 560g (Typ.) |
| Applikatioun | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Volt | 12.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
