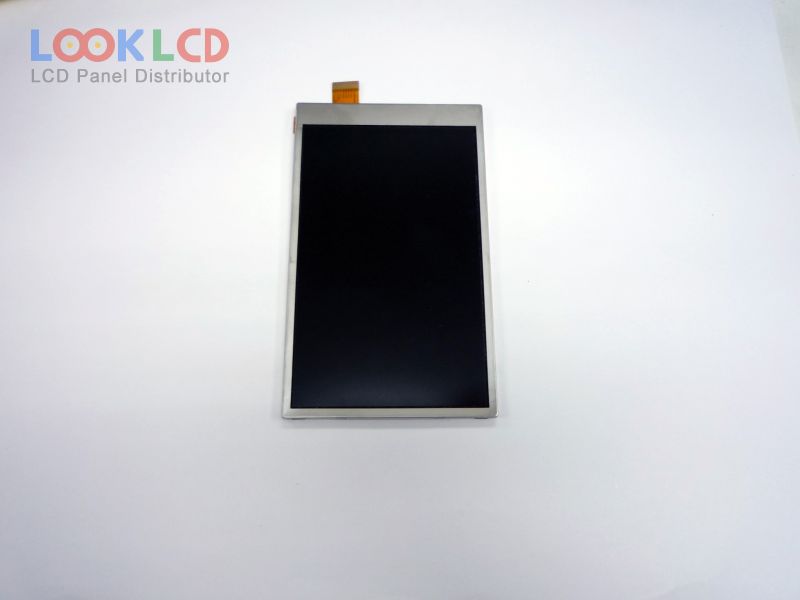

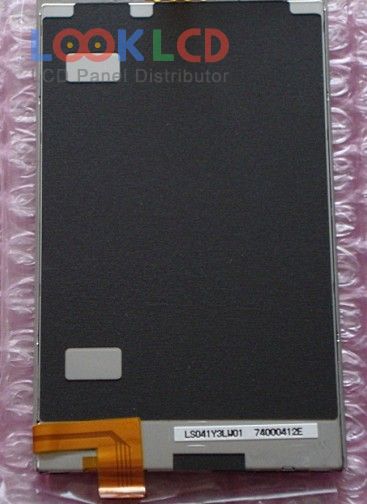

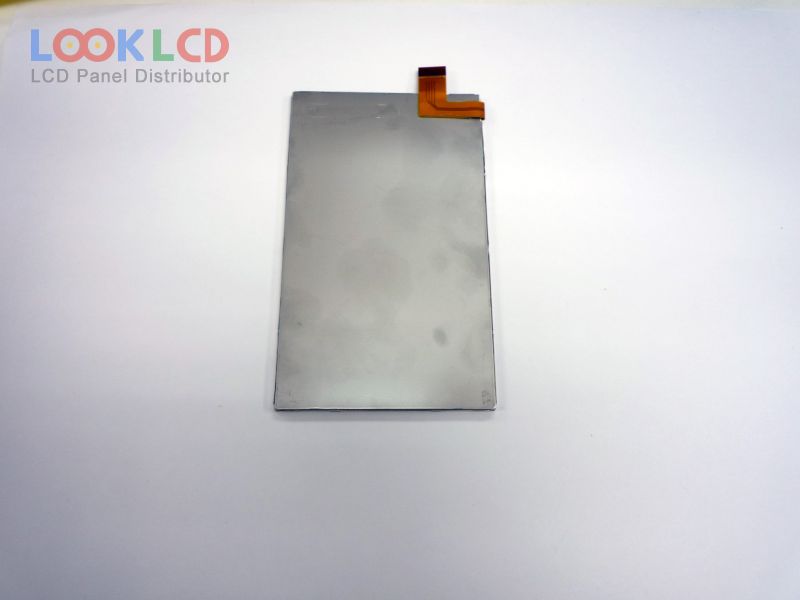

| Part Number | LS041Y3LW01 |
| Mark | SHARP |
| Gréisst | 4.1 |
| Applikatioun | MPH |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 385 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | FlatLink3G |
| Panel Mark | SHARP |
| Panel Modell | LS041Y3LW01 |
| Panel Typ | CG-Silicon , LCM |
| Panel Gréisst | 4.1 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | Normally Black, Transmissive |
| aktiv Beräich | 90×54 mm |
| skizzéieren | 106.6×64.2 mm |
| Uewerfläch | |
| Hellegkeet | 385 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 22/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | FlatLink3G, 31 pins |
| Input Volt | 2.75/1.8V (Typ.)(VDD/VDD1) |
| Applikatioun | MPH |
| AMS410GC01-0 | Samsung | 4.1 | 480×800 |
| AMS410GJ02-0 | Samsung | 4.1 | 480×800 |
| COM41H4M31XLC | ORTUSTECH | 4.1 | 320×240 |
| LS041Y3LW01 | SHARP | 4.1 | 800×480 |
| LT041MDM6000 | TOSHIBA | 4.1 | 480×800 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LH400WS1-SD03 | LG Display | 4.0 | 640×1136 |
| LQ020B3DC01 | SHARP | 2.0 | 176×220 |
| LQ038J7DH52 | SHARP | 3.8 | 320×480 |
| LQ055K3SX02 | SHARP | 5.5 | 720×1280 |
| LS063R1SX01 | SHARP | 6.3 | 1440×2560 |
| TD025THED2 | TPO | 2.5 | 320×240 |
| TM020GDZ25 | Tianma | 2.0 | 176×220 |
| TM022GBH01 | Tianma | 2.2 | 176×220 |
