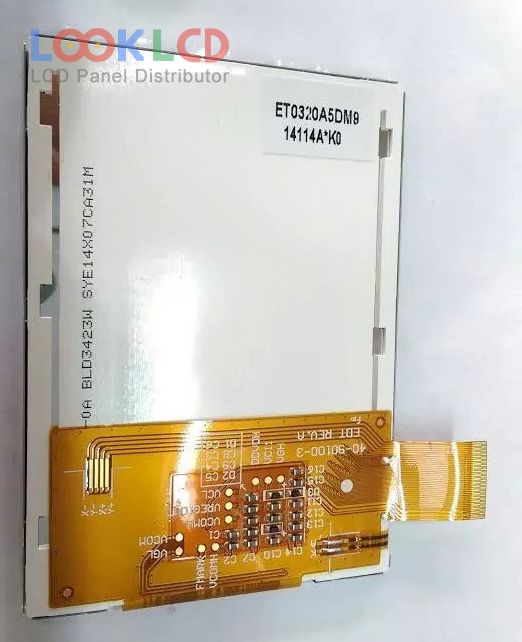

| Part Number | ET0320A5DM9 |
| Mark | EDT |
| Gréisst | 3.2 |
| Applikatioun | MPH |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 450:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | EDT |
| Panel Modell | ET0320A5DM9 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.2 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 48.6×64.8 mm |
| skizzéieren | 55.14×76.8×6 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 450:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 63/70/65/72 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | 8/9/16/18-bit 8080 parallel, 41 pins |
| Input Volt | 3.3/3.3V (Typ.)(IOVCC/VCC) |
| Applikatioun | MPH |
| 32WQF0H | SII | 3.2 | 240×400 |
| AMS320FS03 | Samsung | 3.2 | 320×480 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H320QN01 V2 | AUO | 3.2 | 320×480 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LS032V8DY01 | SHARP | 3.2 | 640×480 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
| TM032PDZ17 | Tianma | 3.2 | 320×480 |
| BTL455496-W613L | BOE | 4.5 | 540×960 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| HVA37WV1-ME0 | HYDIS | 3.7 | 480×800 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| TM032PDZ04 | Tianma | 3.2 | 320×480 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
