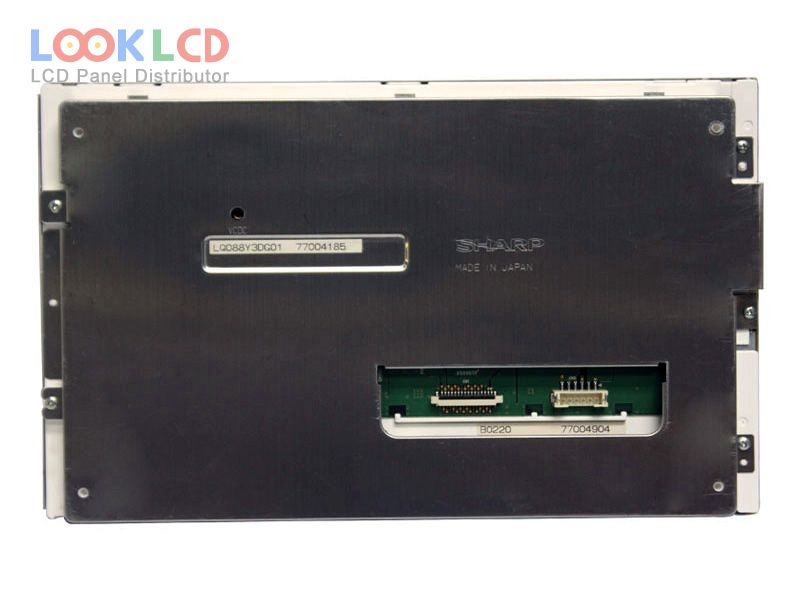

| Part Number | LQ088Y3DG01 |
| Mark | SHARP |
| Gréisst | 8.8 |
| Applikatioun | GM |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 380 |
| CR | |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ088Y3DG01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.8 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 192×115.2 mm |
| skizzéieren | 216×137 mm |
| Uewerfläch | |
| Hellegkeet | 380 cd/m² (Typ.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | 1 pcsCCFLEmbedded (Inverter) |
| Signal Interface | CMOS (1 ch, 6-bit) |
| rohs: | |
| Applikatioun | GM |
