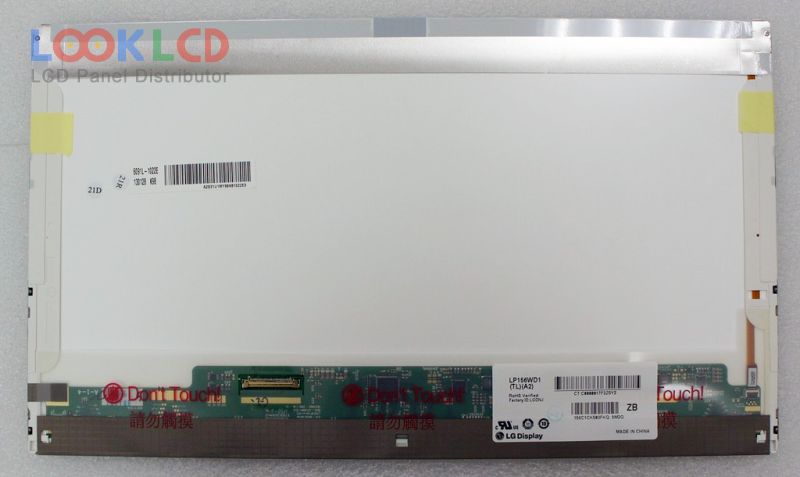

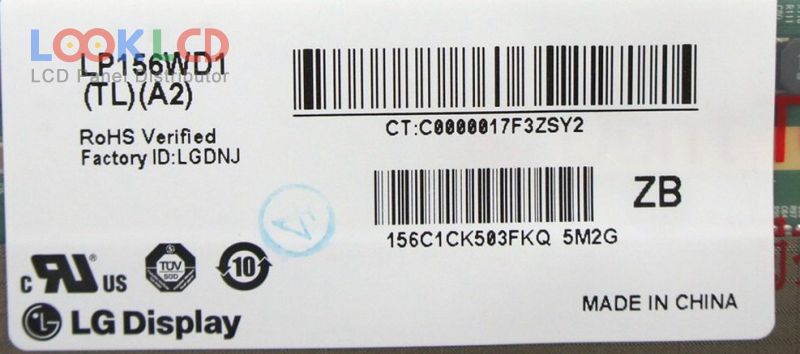

LP156WD1-TLA2

LP156WD1-TLA2
LP156WD1-TLA2
LP156WD1-TLA2 thumb LP156WD1-TLA2 thumb
Mark
LG Display
Gréisst
15.6
Applikatioun
NBPC
Opléisung
1600×900
Zesummesetzung
LCM
Hellegkeet
250
CR
500:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
20
Spezifikatioune

Part Number LP156WD1-TLA2
MarkLG Display
Gréisst15.6
ApplikatiounNBPC
Opléisung1600×900
ZesummesetzungLCM
Hellegkeet250
CR500:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP156WD1-TLA2 10 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst15.6 inch
Resolutioun1600(RGB)×900 , HD+
Display ModusTN, Normally White, Transmissive
aktiv Beräich344.16×193.59 mm
skizzéieren359.3×209.5×5.7 mm
Form StilWedge (PCBA Bent, Depth ≥5.2mm)
UewerflächGlare (Haze 0%), Hard coating (3H)
Hellegkeet250 cd/m² (Typ.)
Kontrast Verhältnis500:1 (Min.)
weisen Faarwen262K (6-bit), CIE193160%
Äntwert Zäit8 (Typ.)(Tr+Td)
Vue Wénkel60/60/50/50 (Min.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (2 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
