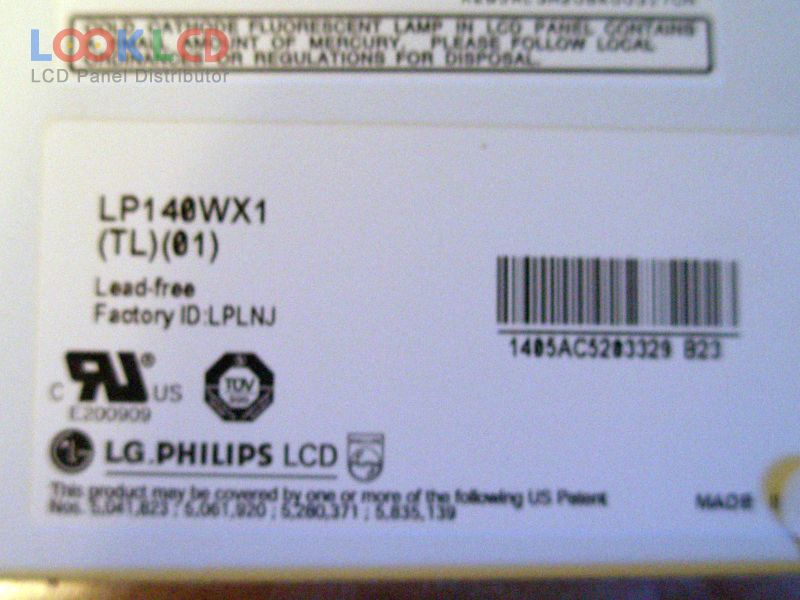

| Part Number | LP140WX1-TL01 |
| Mark | LG Display |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1280×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 420:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LP140WX1-TL01 4 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1280(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 305.28×183.168 mm |
| skizzéieren | 320×199×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 420:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 6/19 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
