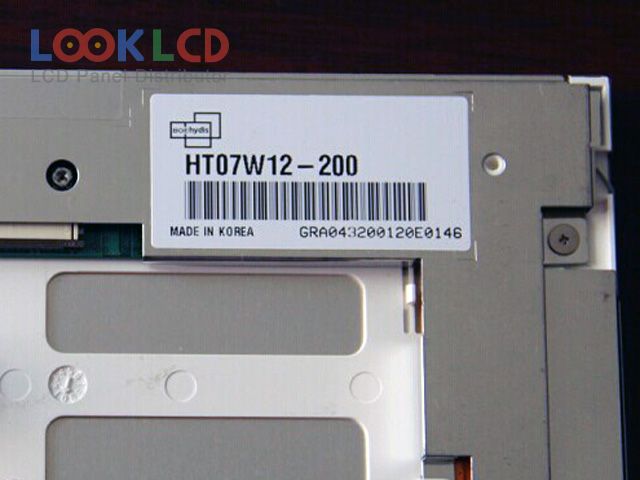

| Part Number | HT07W12-200 |
| Mark | HYDIS |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 480×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 250:1 |
| Faarwen | Full color |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | BOE HYDIS |
| Panel Modell | HT07W12-200 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 480(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 154.08×87.05 mm |
| skizzéieren | 167×102×12.5 mm |
| Uewerfläch | Antiglare, Hard coating |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | Full color |
| Äntwert Zäit | 10/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Analog RGB + Composite Video (NTSC/PAL), 30 pins |
| Input Volt | 9.0/5.0/18/-15/-10V (Typ.)(VCOM/VDD/VGH/VGL/VDL) |
| Applikatioun | CNS |
