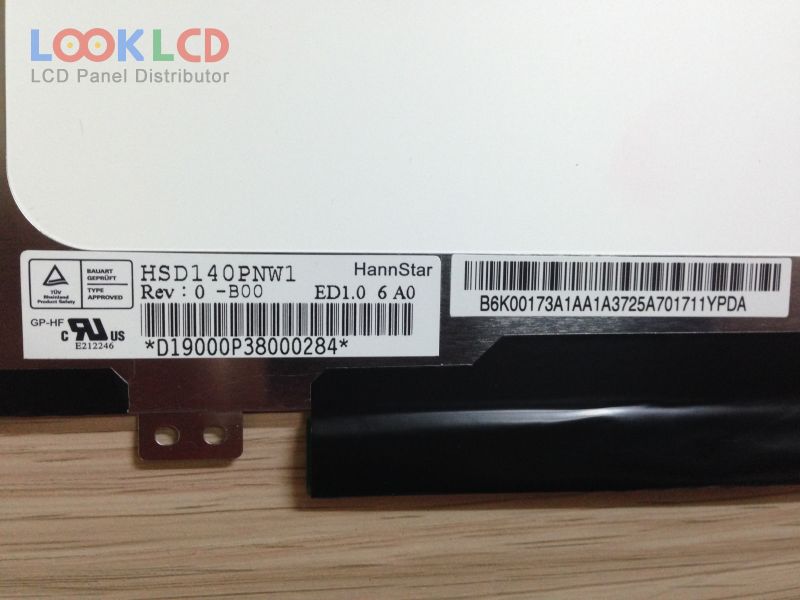

| Part Number | HSD140PNW1-B00 |
| Mark | HannStar |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1600×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | HannStar |
| Panel Modell | HSD140PNW1-B00 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1600(RGB)×900 , HD+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.6×174.15 mm |
| skizzéieren | 320.4×205.1×3 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 4/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
