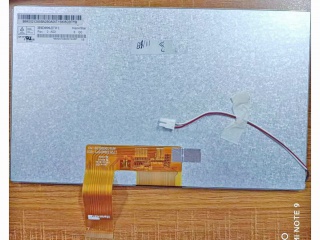

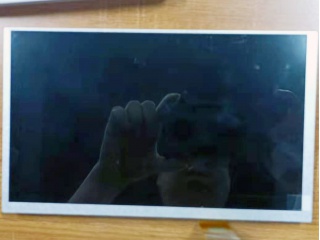

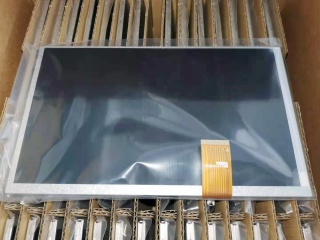

| Part Number | HSD090JFW1-A02 |
| Mark | HannStar |
| Gréisst | 9.0 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | 3S13P WLED , 15K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD090JFW1-A02 |
| Écran Gréisst | 9.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×600 (WSVGA) 132PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 196.608 × 114.15 (H×V) |
| Kontur (mm) | 211.1 × 126.5 × 6 (H×V×D) |
| Bezel Beräich (mm) | 200.01 × 117.55 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 17/18 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 16.2M 50% NTSC |
| mass | 226g (Typ.) |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , FPC 40 pins |
| Spannungsversuergung | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
