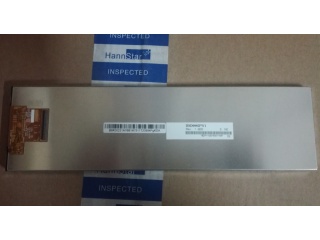

| Part Number | HSD088IPW1-B00 |
| Mark | HannStar |
| Gréisst | 8.8 |
| Applikatioun | Automotive Display |
| Opléisung | 1920×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 30K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD088IPW1-B00 |
| Écran Gréisst | 8.8 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1920×480(RGB) 222PPI |
| Arrangement | RGB Horizontal Stripe |
| aktiv Beräich (mm) | 218.88 × 54.72 (H×V) |
| Kontur (mm) | - |
| luminance | - |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 16.7M 50% NTSC |
| mass | - |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) , 40 pins Connector |
| Spannungsversuergung | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
