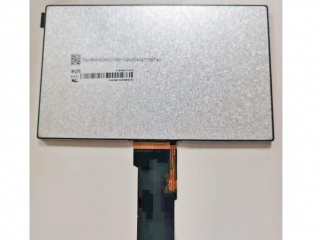

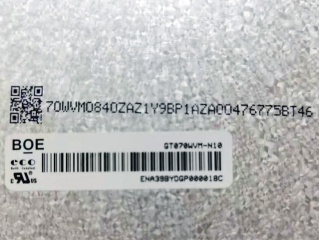

| Part Number | GT070WVM-N10-3GP0 |
| Mark | BOE |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | |
| Panel Mark | BOE |
| Panel Gréisst | 7.0" |
| Resolutioun | 800(RGB)×480, WVGA, 134PPI |
| Affichage Beräich | 154.08(W)×85.92(H) mm |
| Kontur Gréisst | 164.9(W)×100(H) ×6(D) mm |
| Hellegkeet | 500 cd/m² (Typ.) |
| Vue Wénkel | 75/75/60/75 (Typ.)(CR≥10) |
| beschte Vue op | - |
| weisen Faarwen | 262K/16.7M 50% NTSC |
| Frequenz | 60Hz |
| Gewiicht | 133±5g |
| Panel Modell | GT070WVM-N10-3GP0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 157.08(W)×89.33(H) mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Kontrast Verhältnis | 600:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Lampe Typ | WLED , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
