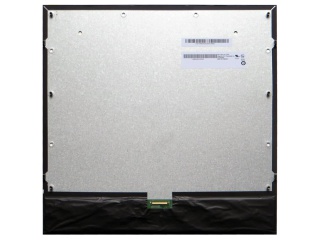

| Part Number | G170HAN01.0 |
| Mark | AUO |
| Gréisst | 17.0 |
| Applikatioun | Industrial |
| Opléisung | 1920×1920 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 9S6P |
| Interface | |
| Panel Mark | AUO |
| Panel Gréisst | 17.0" |
| Resolutioun | 1920(RGB)×1920, 159PPI |
| Affichage Beräich | 305.28(W)×305.28(H) mm |
| Kontur Gréisst | 325.01(W)×319.33(H) ×12.2(D) mm |
| Hellegkeet | 600 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M 72% NTSC |
| Frequenz | 60Hz |
| Gewiicht | 1.20Kgs (Max.) |
| Panel Modell | G170HAN01.0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | AHVA, Normally Black, Transmissive |
| Äntwert Zäit | 13/12 (Typ.)(Tr/Td) |
| Lampe Typ | 9S6P WLED , 50K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
