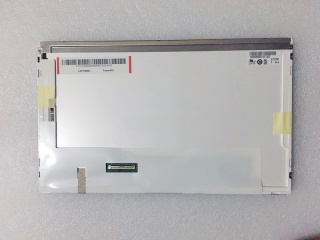

| Part Number | G101STN01.6 |
| Mark | AUO |
| Gréisst | 10.1 |
| Applikatioun | Industrial |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | |
| Fabrikant beschwéiert | AUO |
| Modell Numm | G101STN01.6 |
| Écran Gréisst | 10.1 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 222.72 × 125.28 (H×V) |
| Kontur (mm) | 235 × 143 × 5.2 (H×V×D) |
| Bezel Beräich (mm) | 226.34 × 128.10 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10) |
| Äntwert | 7/9 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K/16.7M 45% NTSC |
| mass | 180g (Typ.) |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
