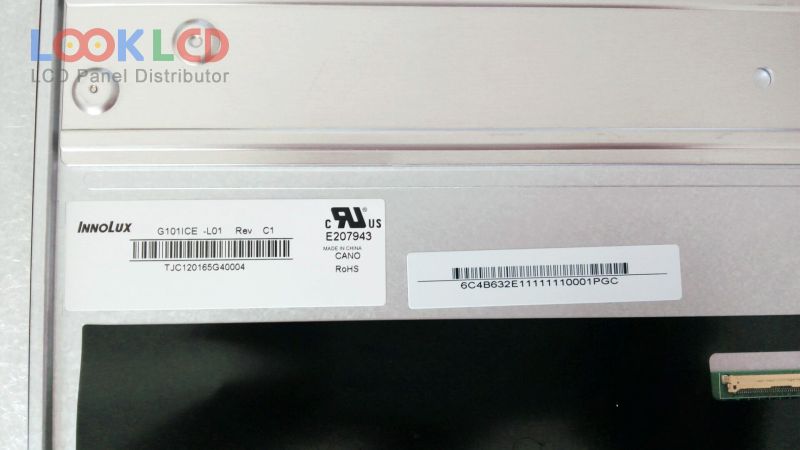

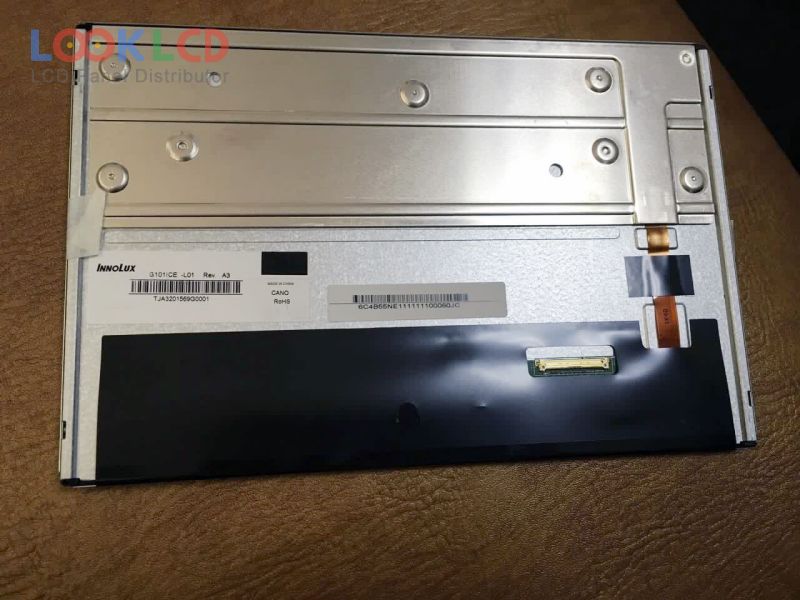

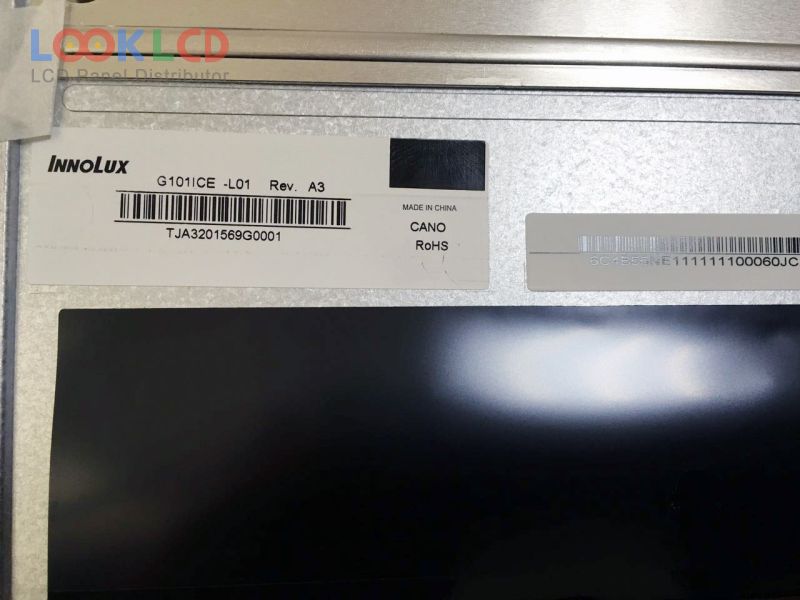

| Part Number | G101ICE-L01 |
| Mark | Innolux |
| Gréisst | 10.1 |
| Applikatioun | IA |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | INNOLUX |
| Panel Modell | G101ICE-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | AAS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 230.7×152.55×7 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193152% |
| Äntwert Zäit | 14/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
