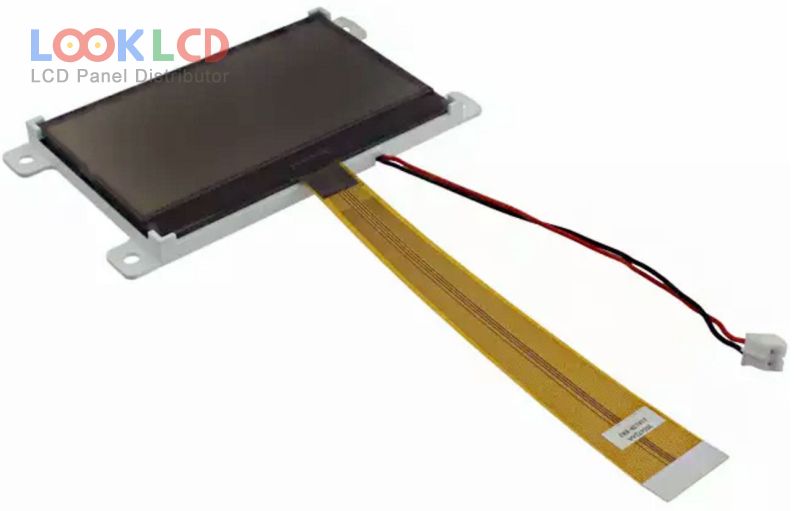

| Part Number | F-55472GNFJ-SLW-AAN |
| Mark | Kyocera |
| Gréisst | 2.8 |
| Applikatioun | IA |
| Opléisung | 128×64 |
| Zesummesetzung | LCM |
| Hellegkeet | 60 |
| CR | 5:1 |
| Faarwen | Monochrome |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | Kyocera |
| Panel Modell | F-55472GNFJ-SLW-AAN |
| Panel Typ | STN-LCD , LCM |
| Panel Gréisst | 2.8 inch |
| Resolutioun | 128×64 |
| Display Modus | STN, Black/White mode, Transflective |
| aktiv Beräich | 63.857×31.921 mm |
| skizzéieren | 89.7×49.8×6 mm |
| Uewerfläch | |
| Hellegkeet | 60 cd/m² (Typ.) |
| Kontrast Verhältnis | 5:1 (Typ.)(Transmissive) |
| weisen Faarwen | Monochrome |
| Äntwert Zäit | 190/95 (Typ.)(Tr/Td) |
| Vue Wénkel | |
| Lampe Typ | 1S4PWLEDWithout Driver |
| Signal Interface | 8-bit 6080/8080 parallel, 30 pins |
| Input Volt | 3.0V (Typ.) |
| Applikatioun | IA |
