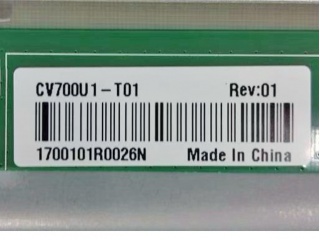

| Part Number | CV700U1-T01 |
| Mark | CHOT |
| Gréisst | 70 |
| Applikatioun | TV Sets |
| Opléisung | 3840×2160 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 5000:1 |
| Faarwen | 1.07B |
| Géigeliicht | No B/L |
| Interface | V-by-One |
| Fabrikant beschwéiert | CHOT |
| Écran Gréisst | 70 inch |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 63PPI |
| aktiv Beräich (mm) | 1549.44 × 846.72 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 0 cd/m² |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Glas deck | 0.50+0.50 mm |
| Faarfdéift | 1.07B 70% NTSC |
| mass | 3.87Kgs (Typ.) |
| Erfrëschungsrate | 60Hz |
| Chauffer ic Lëscht | Built-in COF 12 source + 8 gate chips |
| Signal Typ | V-by-One 8 lane , 51 pins Connector |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | CV700U1-T01 |
| Écran Typ | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 1561.44 × 859.22 × 1.37 (H×V×D) |
| Behandlung | Antiglare (Haze 1%), Hard coating (3H) |
| Kontrast Verhältnis | 5000 : 1 (Typ.) (TM) |
| Äntwert | 8.5 (Typ.)(G to G) ms |
| Aarbecht Modus | Transmissive |
| transmissivitéit | 4.9% (Typ.)(with Polarizer) |
| benotzt fir | TV Sets |
| touchscreen | Without |
