| Part Number | COM50H5N17ULC |
| Mark | Ortustech |
| Gréisst | 5.0 |
| Applikatioun | Handheld & PDA |
| Opléisung | 720×1280 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:13:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | Ortustech |
| Modell | COM50H5N17ULC |
| diagonal Gréisst | 5.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 720(RGB)×1280 [WXGA] 296PPI |
| Configuratioun | RGB Vertical Stripe |

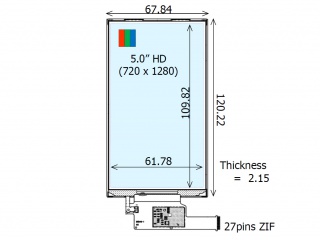

| aktiv Beräich | 61.776(H)×109.824(V) mm |
| kontur dim. | 67.84(H)×120.22(V) ×2.4(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating (2H) |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 100 (Max.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Betribssystemer Modus | VA, Normally Black, Transflective |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Liichtquell | WLED [8S1P] , 50K hours , W/O Driver |
| Gewiicht | 34.0g (Typ.) |
| entworf fir | Handheld & PDA |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | MIPI (4 data lanes) , 27 pins FPC |
| Stroumversuergung | 1.8/2.9V (Typ.)(IOVCC/VCC) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| BTL507212-W746L | BOE | 5.0 | 720×1280 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LTG500QV-F03 | Samsung | 5.0 | 320×240 |
| PA050DS7 | E Ink | 5.0 | 320×234 |
| TFD50W72MS | TOSHIBA | 5.0 | |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
