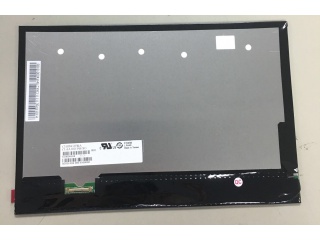

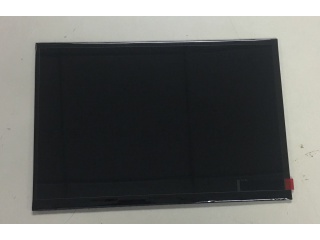

| Part Number | CLAA101FP0E XG |
| Mark | CPT |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet Ind |
| Opléisung | 1920×1200 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 750:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | CPT |
| Panel Modell | CLAA101FP0E XG |
| Panel Gréisst | 10.1" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×1200, WUXGA, 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 216.576(W)×135.36(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 229(W)×153(H) ×4.8(D) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 700 cd/m² (Typ.) |
| Kontrast Verhältnis | 750:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | HFFS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 50% NTSC |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 150g (Typ.) |
| Applikatioun | Pad & Tablet Industrial Outdoor High Brightness |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
