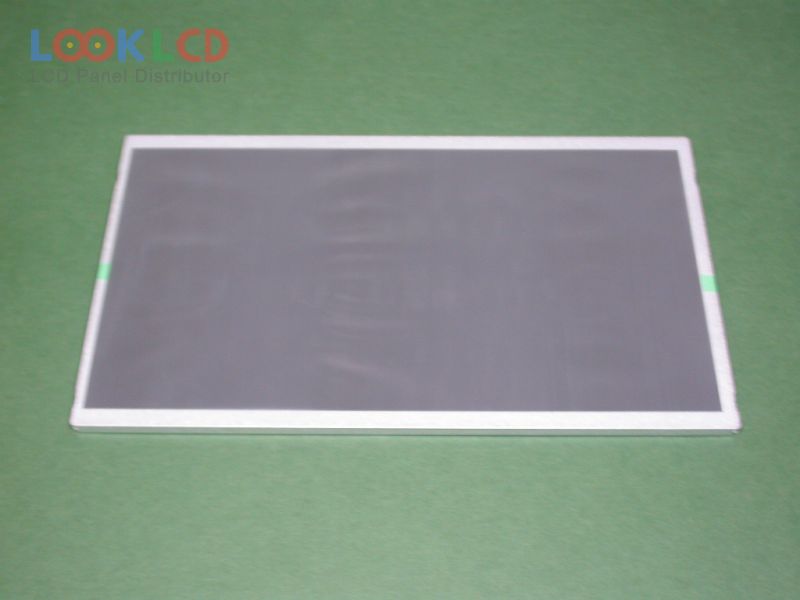

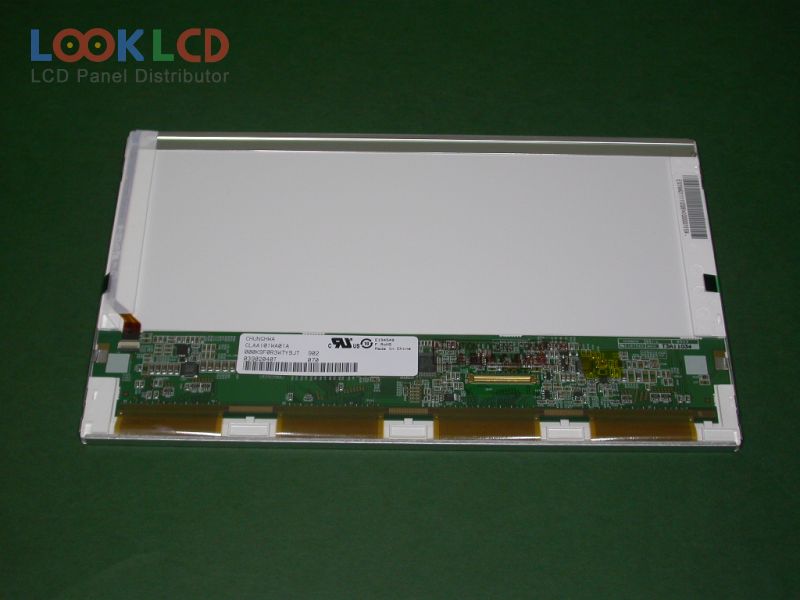

| Part Number | CLAA101WA01A |
| Mark | CPT |
| Gréisst | 10.1 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 230 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CPT |
| Panel Modell | CLAA101WA01A 3 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 222.72×125.22 mm |
| skizzéieren | 235×143×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |

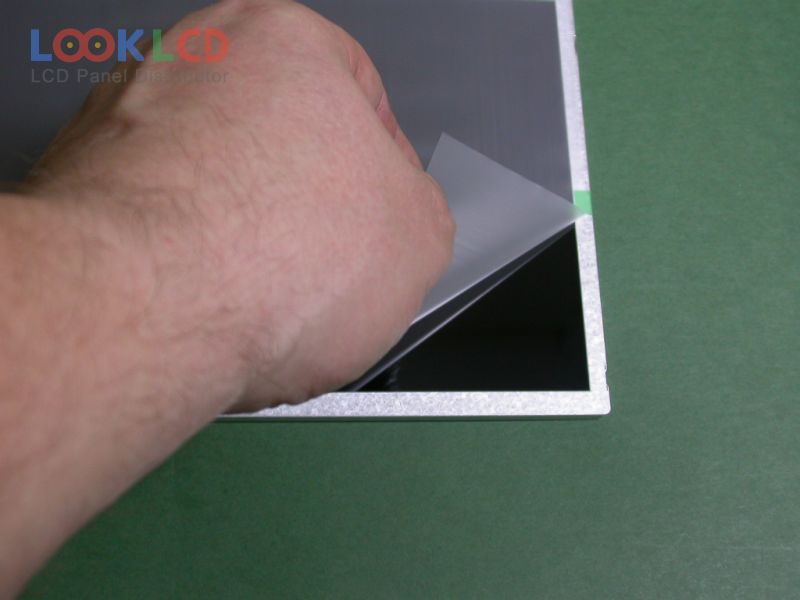

| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 230 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193158% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | NBPC |
