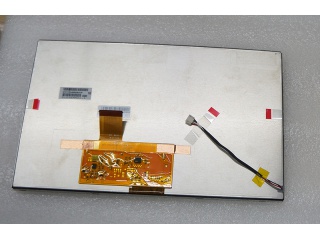

| Part Number | C101EAN01.1 |
| Mark | AUO |
| Gréisst | 10.1 |
| Applikatioun | Automotive Display |
| Opléisung | 1280×720 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Panel Mark | AUO |
| Panel Modell | C101EAN01.1 |
| Panel Gréisst | 10.1" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1280(RGB)×720, WXGA, 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 223.68(W)×125.82(H) mm |
| bezel Ouverture | - |
| Hellegkeet | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Display Modus | AHVA, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 20/20 (Max.)(Tr/Td) |
| weisen Faarwen | 16.7M |
| Lampe Typ | WLED |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | - |
| Applikatioun | Automotive Display |
| Ëmwelt | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
