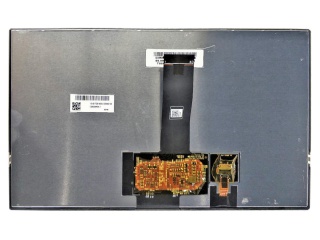

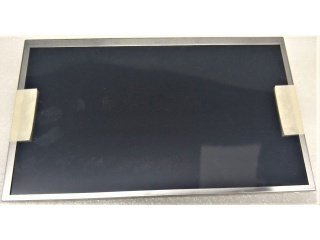

| Part Number | C090EAN04.1 |
| Mark | AUO |
| Gréisst | 9.0 |
| Applikatioun | Outdoor High Brightn |
| Opléisung | 1280×720 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AUO |
| Modell | C090EAN04.1 |
| diagonal Gréisst | 9.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×720 [WXGA] 163PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 198.72(H)×111.78(V) mm |
| kontur dim. | 212.2(H)×127.9(V) ×11(D) mm |
| bezel Beräich | 202.02(H)×115.78(V) mm |
| Behandlung | Antiglare |
| luminance | 900 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Liichtquell | WLED [8S3P] , 10K hours , W/O Driver |
| Gewiicht | TBD |
| entworf fir | Outdoor High Brightness Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
