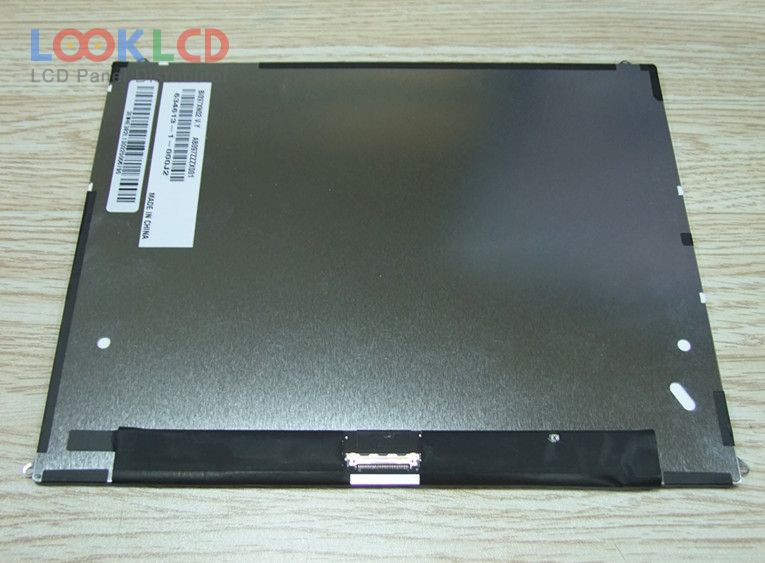

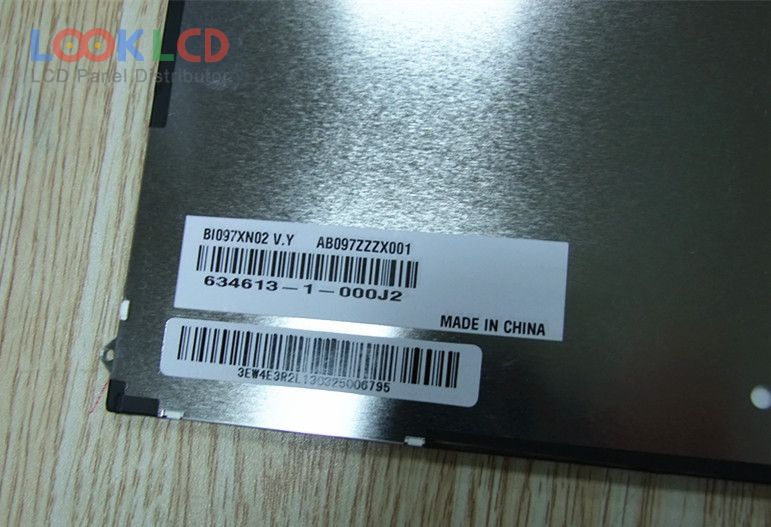

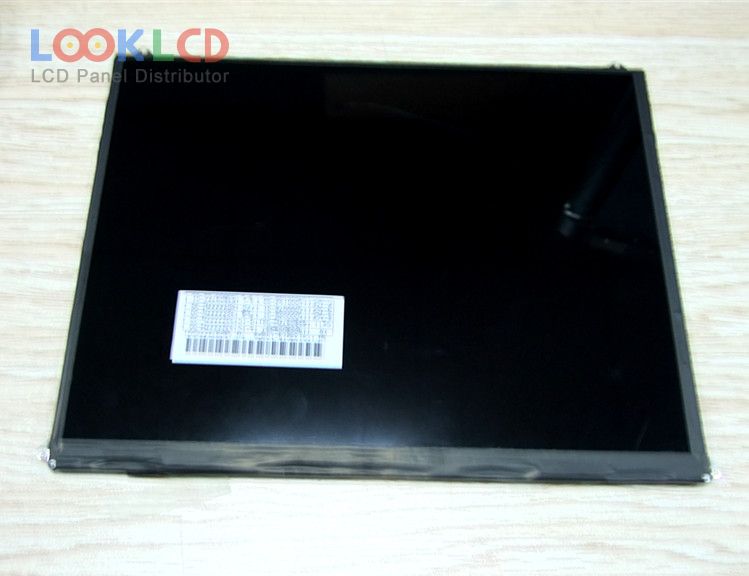

| Part Number | BI097XN02 V.Y |
| Mark | Innolux |
| Gréisst | 9.7 |
| Applikatioun | |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | BI097XN02 V.Y |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.7 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 196.608×147.456 mm |
| skizzéieren | 210×164.25×5.65 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
