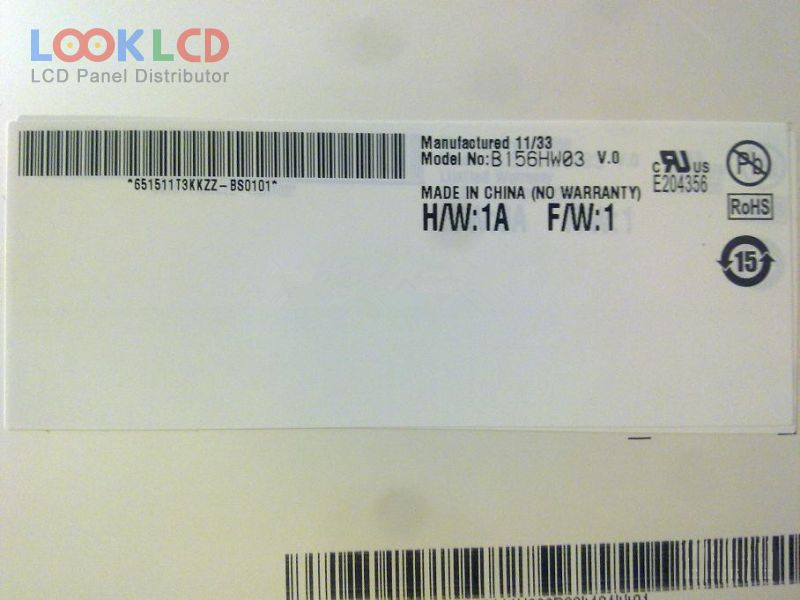

| Part Number | B156HW03 V0 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B156HW03 V0 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.16×193.59 mm |
| skizzéieren | 359.5×223.8×4.1 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
