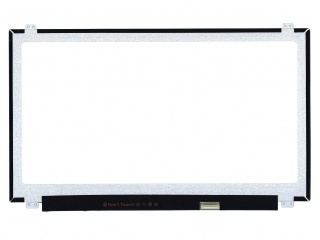

| Part Number | B156HAN06.2 HWNA |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| Modell | B156HAN06.2 HWNA 39 Compatible |
| diagonal Gréisst | 15.6 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 344.16(H)×193.59(V) mm |
| kontur dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| bezel Beräich | - |
| Behandlung | Glare (Haze 0%) |
| luminance | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 262K 45% NTSC |
| Liichtquell | WLED , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (2 Lanes) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V0 | AUO | 15.6 | 1366×768 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156KT06-801 | Samsung | 15.6 | 1600×900 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
