LG Display LP156WH3-TLT2 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

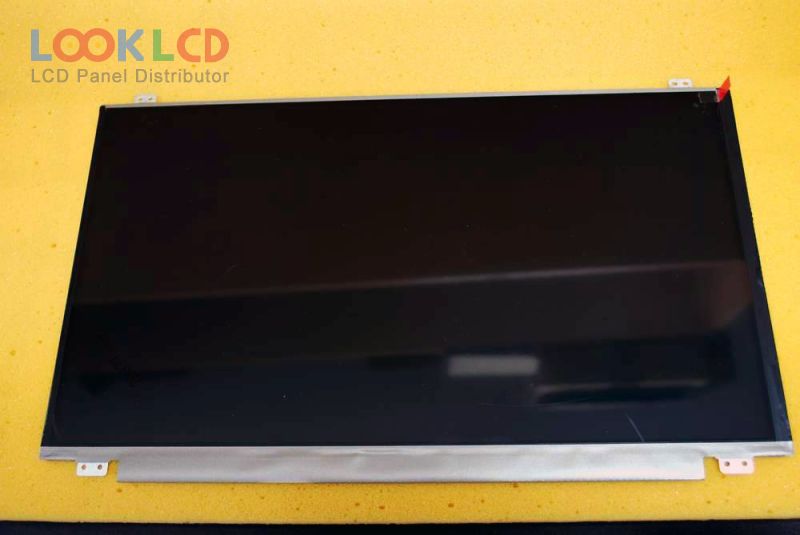

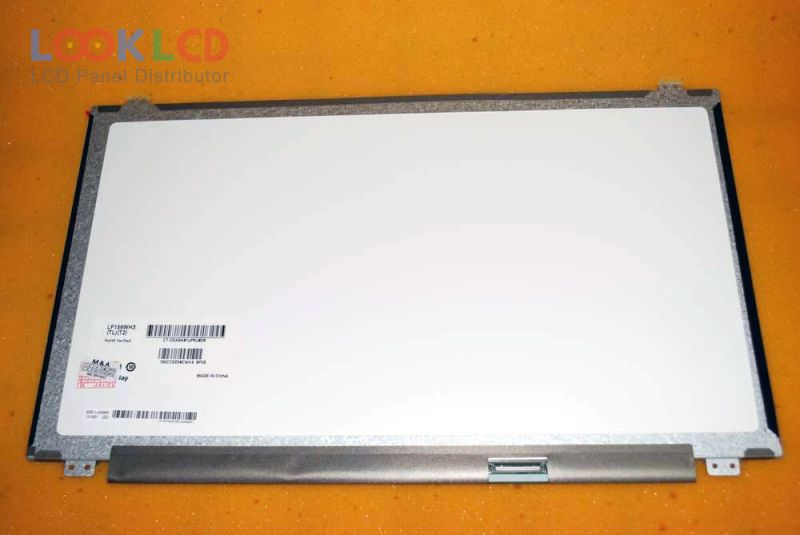

LP156WH3-TLT2

LP156WH3-TLT2
LP156WH3-TLT2
LP156WH3-TLT2 thumb LP156WH3-TLT2 thumb
Mark
LG Display
Gréisst
15.6
Applikatioun
NBPC
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
200
CR
350:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
301
Spezifikatioune

Part Number LP156WH3-TLT2
MarkLG Display
Gréisst15.6
ApplikatiounNBPC
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet200
CR350:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP156WH3-TLT2
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst15.6 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich344.232×193.536 mm
skizzéieren359.5×217.2×3.8 mm
Form StilFlat (PCBA Flat, Depth 3.4~4.0mm)
UewerflächAntiglare
Hellegkeet200 cd/m² (Typ.)
Kontrast Verhältnis350:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193145%
Äntwert Zäit16 (Typ.)(Tr+Td)
Vue Wénkel45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
