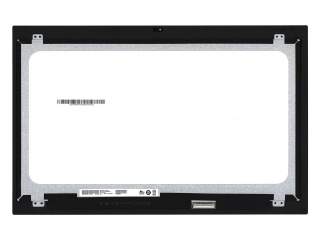

| Part Number | B156HAB02.0 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, Assemb |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B156HAB02.0 |
| Panel Gréisst | 15.6" |
| Panel Typ | a-Si TFT-LCD, Assembly |
| Resolutioun | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 344.16(W)×193.59(H) mm |
| bezel Ouverture | - |
| Hellegkeet | - |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | On-Cell Touch |
| Form Stil | - |
| Applikatioun | Laptop |
| Signal Interface | eDP (2 Lanes) Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
