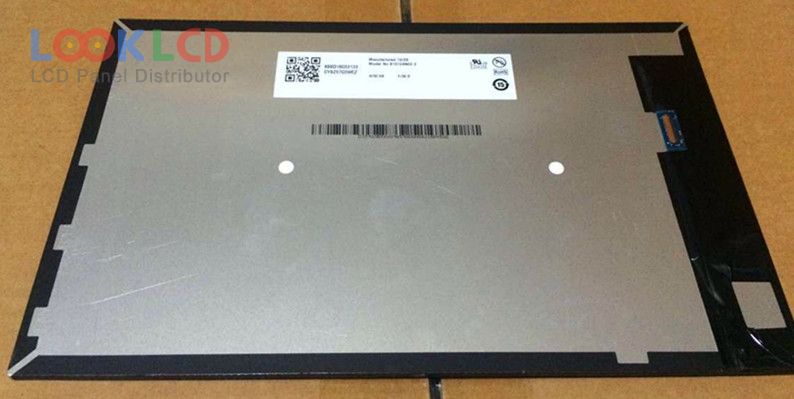

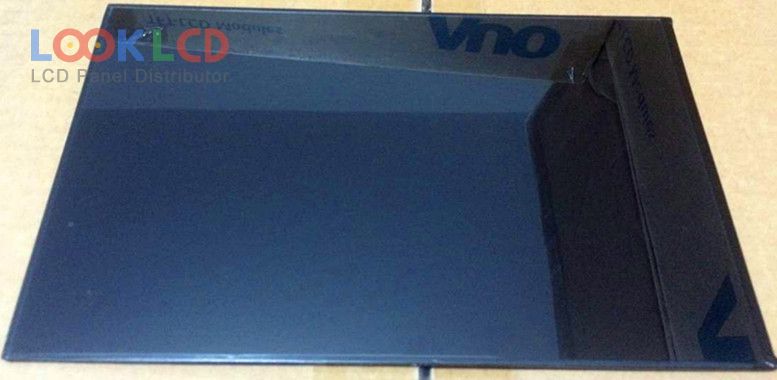

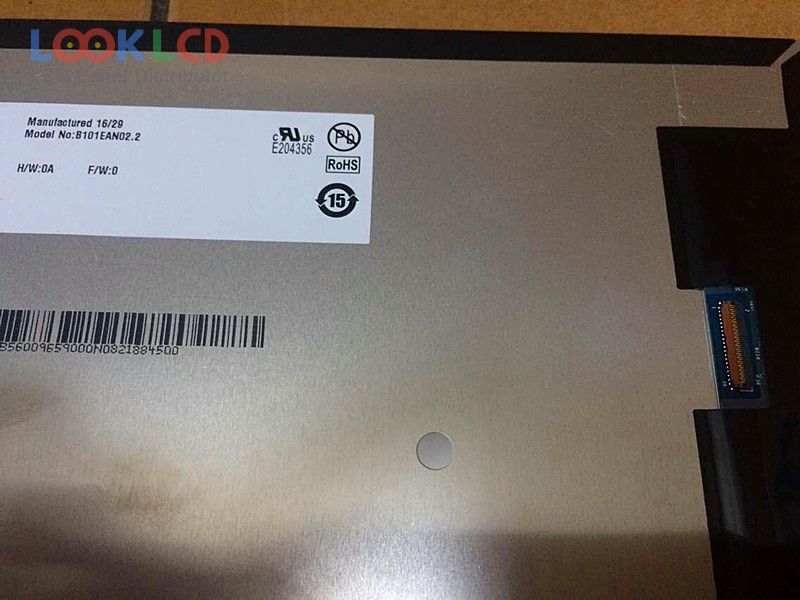

| Part Number | B101EAN02.2 |
| Mark | AUO |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B101EAN02.2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | AHVA, Normally Black, Transmissive |
| aktiv Beräich | 135.36×216.576 mm |
| skizzéieren | 142×228.5 mm |
| Uewerfläch | Glare (Haze 0%), Antireflection |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193160% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 39 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
