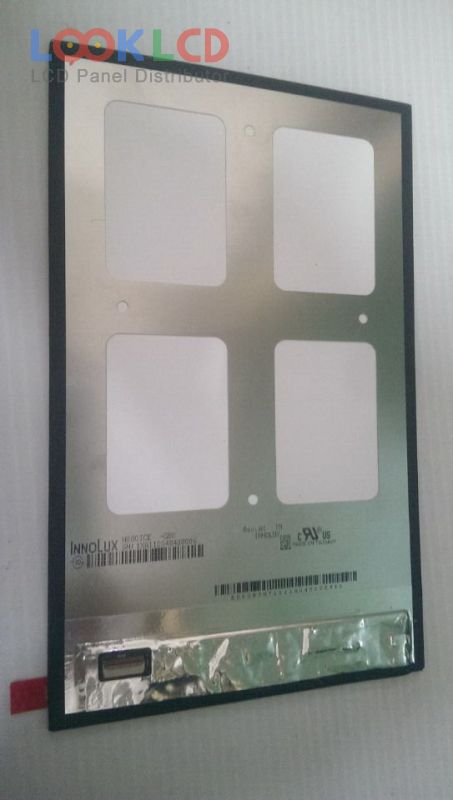

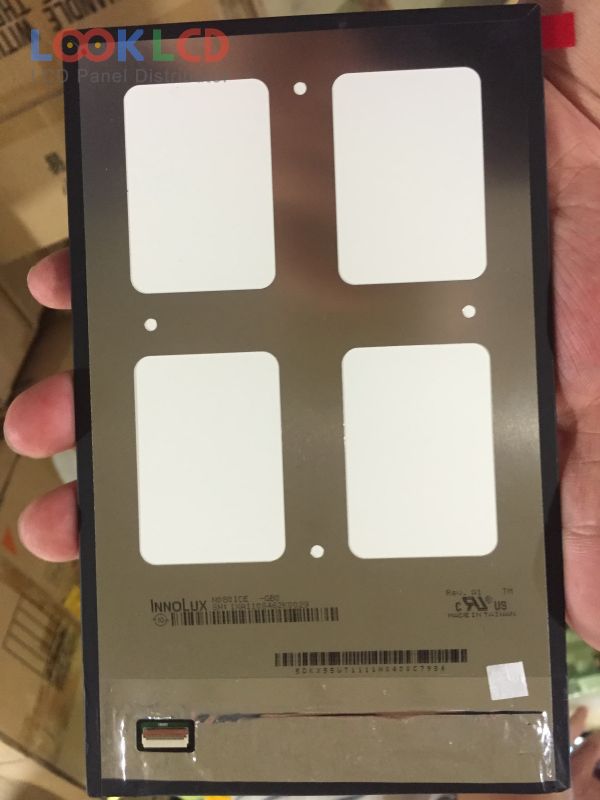

N080ICE-GB0 Rev.A1

N080ICE-GB0 Rev.A1
N080ICE-GB0 Rev.A1
N080ICE-GB0 Rev.A1 thumb N080ICE-GB0 Rev.A1 thumb
Mark
Innolux
Gréisst
8.0
Applikatioun
PAD
Opléisung
800×1280
Zesummesetzung
LCM
Hellegkeet
400
CR
800:1
Faarwen
16.7M
Backlight
WLED
Interface
MIPI
In Stock
1720
Spezifikatioune

Part Number N080ICE-GB0 Rev.A1
MarkInnolux
Gréisst8.0
ApplikatiounPAD
Opléisung800×1280
ZesummesetzungLCM
Hellegkeet400
CR800:1
Faarwen16.7M
GéigeliichtWLED
InterfaceMIPI
Panel MarkINNOLUX
Panel ModellN080ICE-GB0 Rev.A1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst8.0 inch
Resolutioun800(RGB)×1280 , WXGA
Display ModusAAS, Normally Black, Transmissive
aktiv Beräich107.64×172.224 mm
skizzéieren114.58×184.09×4.06 mm
UewerflächHard coating, Antireflection
Hellegkeet400 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.)
weisen Faarwen16.7M (8-bit), CIE193160%
Äntwert Zäit20 (Typ.)(Tr+Td)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ4 stringsWLEDWithout Driver
Signal InterfaceMIPI (4 data lanes), 31 pins
Input Volt1.8/3.3V (Typ.)(VDDI/VCI)
ApplikatiounPAD
