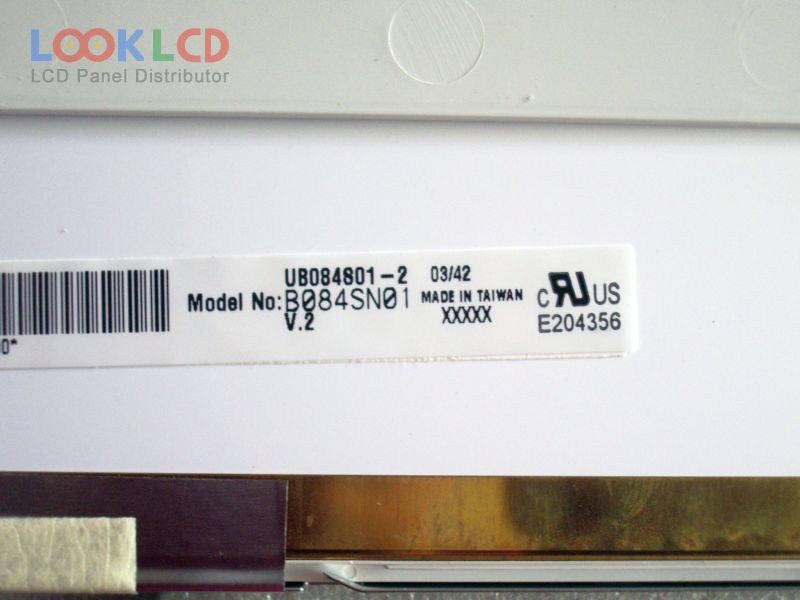

| Part Number | B084SN01 V2 |
| Mark | AUO |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 120 |
| CR | 200:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | AU Optronics |
| Panel Modell | B084SN01 V2 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 170.4×127.8 mm |
| skizzéieren | 203×142.5 mm |
| Uewerfläch | |
| Hellegkeet | 120 cd/m² (Typ.) |
| Kontrast Verhältnis | 200:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 20/30 (Typ.)(Tr/Td) |
| Vue Wénkel | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| B084SN01 V0 | AUO | 8.4 | 800×600 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| B084SN02 V0 | AUO | 8.4 | 800×600 |
| B084SN03 V0 | AUO | 8.4 | 800×600 |
| LQ084S3LG01 | SHARP | 8.4 | 800×600 |
| LQ84S02 01A | SHARP | 8.4 | 800×600 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| G321EV5B000 | SII | 4.7 | 320×240 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| LM24014H | SHARP | 5.2 | 240×64 |
| LQ150X1LGB1 | SHARP | 15.0 | 1024×768 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| MAA084DXA03 | Mitsubishi | 8.4 | 1024×768 |
| MD640.400-54 | FINLUX | 9.1 | 640×400 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
