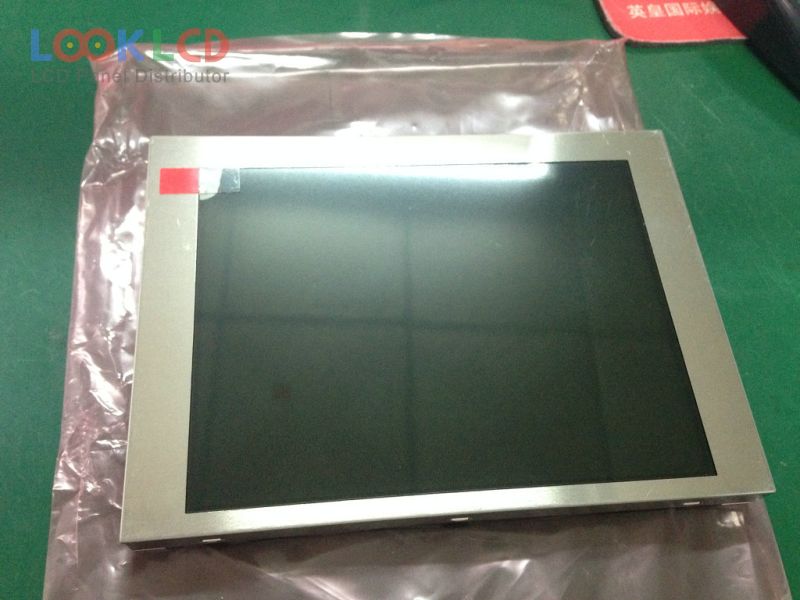

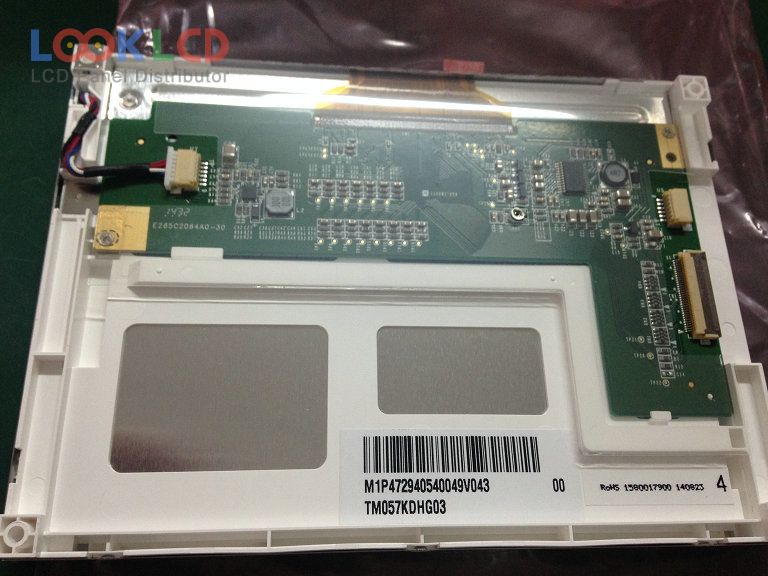

| Part Number | TM057KDHG03 |
| Mark | Tianma |
| Gréisst | 5.7 |
| Applikatioun | IA |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | TIANMA |
| Panel Modell | TM057KDHG03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.7 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 115.2×86.4 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 20/30 (Typ./Max.)(Tr+Td) |
| Vue Wénkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Applikatioun | IA |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| AA065VB01 | Mitsubishi | 6.5 | 640×480 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA121XJ02 | Mitsubishi | 12.1 | 1024×768 |
| DMF5005N-EB | Kyocera | 5.2 | 240×64 |
| LM64C219 | SHARP | 8.0 | 640×480 |
| LM64P30 | SHARP | 9.4 | 640×480 |
| LTA084C270F | TOSHIBA | 8.4 | 800×600 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| P50CD4 | E Ink | 5.0 | 320×234 |
| RGS32256064YH001 | RiTdisplay | 3.2 | 256×64 |
