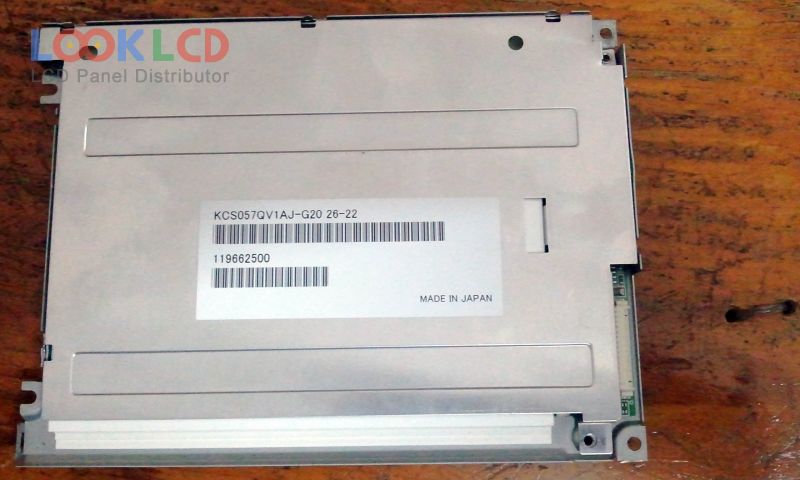

| Part Number | KCS057QV1AJ-G20 |
| Mark | Kyocera |
| Gréisst | 5.7 |
| Applikatioun | IA |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 40:1 |
| Faarwen | Color |
| Géigeliicht | CCFL |
| Interface | Parallel Data |
| Panel Mark | Kyocera |
| Panel Modell | KCS057QV1AJ-G20 |
| Panel Typ | CSTN-LCD , LCM |
| Panel Gréisst | 5.7 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | STN, Normally Black, Transmissive |
| aktiv Beräich | 115.2×86.4 mm |
| skizzéieren | 154.6×114.8×9 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 40:1 (Typ.) |
| weisen Faarwen | Color |
| Äntwert Zäit | 220/110 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 75Hz |
| Lampe Typ | 1 pcsCCFLOptional |
| Signal Interface | Parallel Data (8-bit), 15 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | IA |
