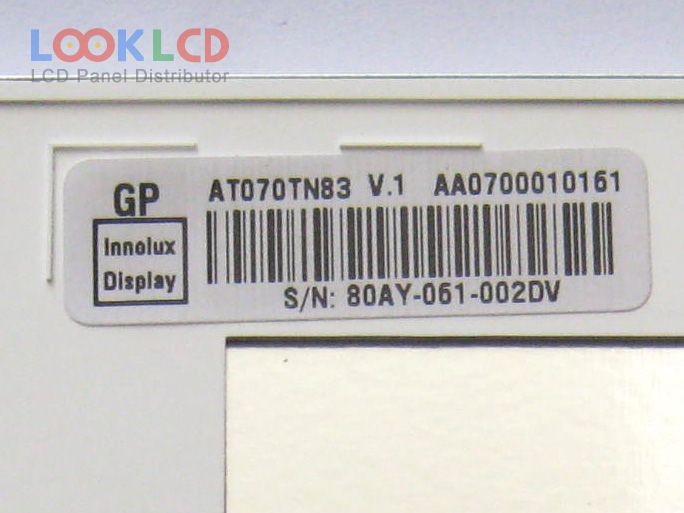

| Part Number | AT070TN83 V.1 |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | INNOLUX |
| Panel Modell | AT070TN83 V.1 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×104×5.8 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | TTL (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.)(VCC) |
| Applikatioun | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| AT070TNA2 V.1 | Innolux | 7.0 | 1024×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| DLC0700EZG-T-2 | Other | 7.0 | 800×480 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
