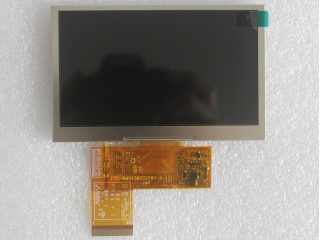

| Part Number | AM-800480BDTZQW-00H |
| Mark | AMPIRE |
| Gréisst | 4.3 |
| Applikatioun | Industrial Automotiv |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | AMPIRE |
| Modell | AM-800480BDTZQW-00H |
| diagonal Gréisst | 4.3 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 216PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 95.04(H)×53.856(V) mm |
| kontur dim. | 105.3(H)×67(V) mm |
| bezel Beräich | 97.9(H)×56.7(V) mm |
| Behandlung | - |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 40 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.2M |
| Liichtquell | WLED [6S2P] , 50K hours , W/O Driver |
| Gewiicht | - |
| entworf fir | Industrial Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
