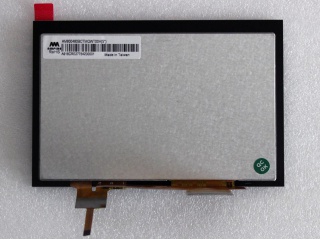

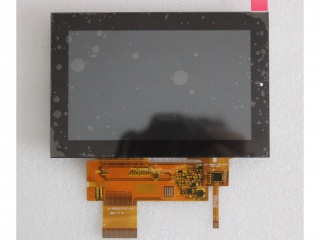

| Part Number | AM-800480BCTMQW-T00H |
| Mark | AMPIRE |
| Gréisst | 5.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S2P WLED , 50K hours , No Driver |
| Interface | Parallel |
| Fabrikant beschwéiert | AMPIRE |
| Écran Gréisst | 5.0 inch |
| Pixel Zuel | 800(RGB)×480 (WVGA) 188PPI |
| aktiv Beräich (mm) | 108 × 64.8 (H×V) |
| luminance | 340 cd/m² (Typ.) |
| Vue Wénkel | 75/75/60/70 (Typ.)(CR≥10) |
| gutt Vue op | 6 o'clock |
| Faarfdéift | 16.7M 52% NTSC |
| mass | - |
| Erfrëschungsrate | 60Hz |
| Signal Typ | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Modell Numm | AM-800480BCTMQW-T00H |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 129.9 × 86.7 × 7.18 (H×V×D) |
| Kontrast Verhältnis | 600 : 1 (Typ.) (TM) |
| Äntwert | 4/12 (Typ.)(Tr/Td) ms |
| Aarbecht Modus | TN, Normally White, Transmissive |
| benotzt fir | Industrial |
| touchscreen | PCAP |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| HSD050FMW2-D00 | HannStar | 5.0 | 540×960 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
