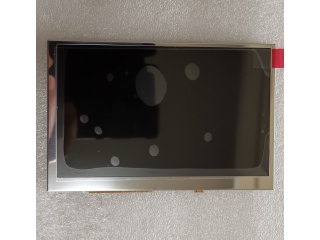

| Part Number | AM-800480AZTMQW-05H |
| Mark | AMPIRE |
| Gréisst | 5.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | |
| Mark | AMPIRE |
| Modell | AM-800480AZTMQW-05H |
| diagonal Gréisst | 5.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 188PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 108(H)×64.8(V) mm |
| kontur dim. | 118.5(H)×77.1(V) ×7.41(D) mm |
| bezel Beräich | 110.6(H)×67.4(V) mm |
| Behandlung | - |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | 2/6 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/70/60 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 47% NTSC |
| Liichtquell | WLED [3S7P] , 30K hours , With LED Driver |
| Gewiicht | - |
| entworf fir | Industrial |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
