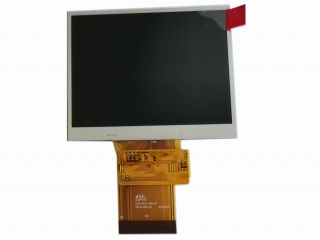

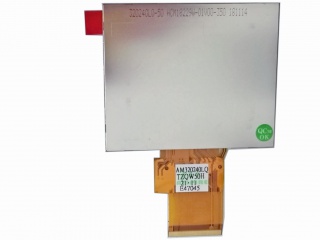

| Part Number | AM-320240LQTZQW-50H |
| Mark | AMPIRE |
| Gréisst | 3.5 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 320×240 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S2P |
| Interface | Parallel |
| Panel Mark | AMPIRE |
| Panel Gréisst | 3.5" |
| Resolutioun | 320(RGB)×240, QVGA, 115PPI |
| Affichage Beräich | 70.08(W)×52.56(H) mm |
| Kontur Gréisst | 76.9(W)×63.9(H) ×3.45(D) mm |
| Hellegkeet | 800 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M 60% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | - |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | AM-320240LQTZQW-50H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 72.88(W)×54.94(H) mm |
| Uewerfläch | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | Normally Black, Transmissive |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Lampe Typ | 6S2P WLED , 36K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial Outdoor High Brightness Instruments & Meters |
