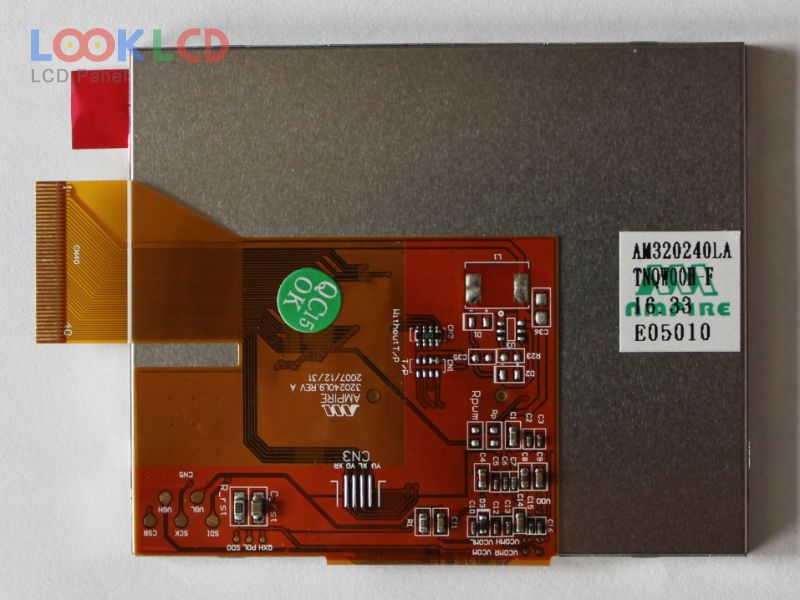

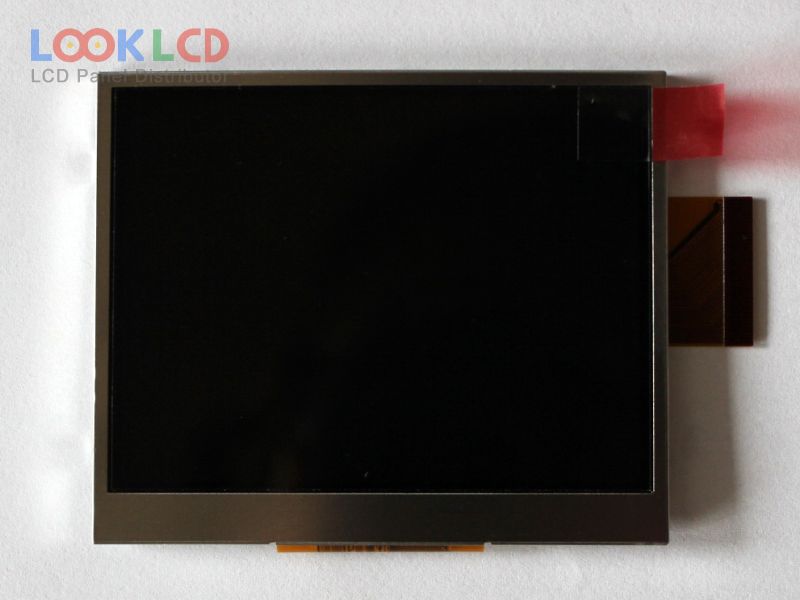

| Part Number | AM-320240LATNQW-00H-F |
| Mark | AMPIRE |
| Gréisst | 3.5 |
| Applikatioun | HHP |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | AMPIRE |
| Panel Modell | AM-320240LATNQW-00H-F |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 70.08×52.56 mm |
| skizzéieren | 77.8×64.5×4.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 50 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | HHP |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| PD035VX9 | E Ink | 3.5 | 480×640 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
