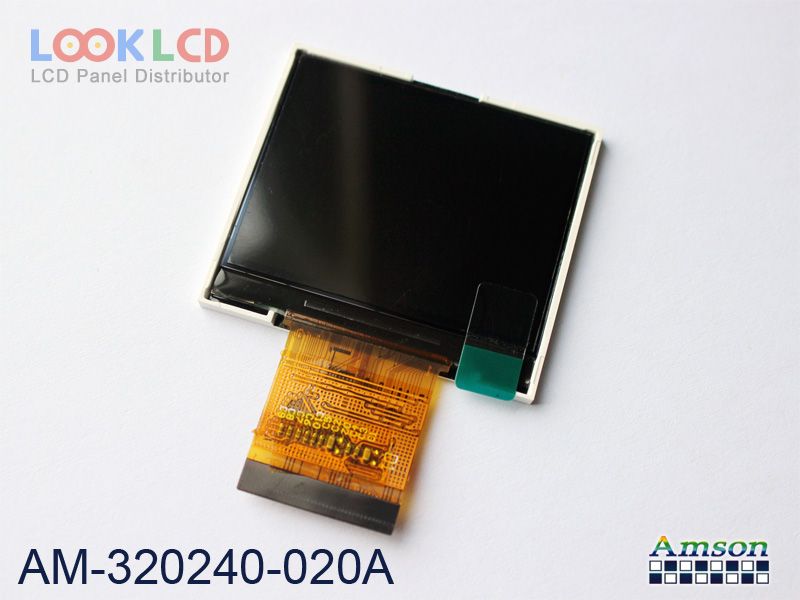

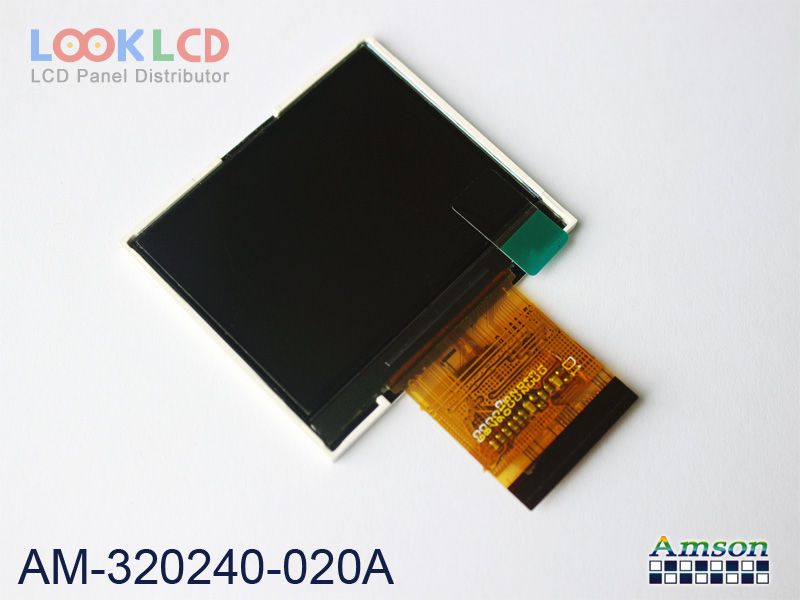

| Part Number | AM-320240-020A |
| Mark | Other |
| Gréisst | 2.0 |
| Applikatioun | HHP |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | Serial RGB |
| Panel Mark | Amson |
| Panel Modell | AM-320240-020A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.0 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 40.8×30.6 mm |
| skizzéieren | 46.1×40.96×2.7 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | Serial RGB (6-bit) + SPI, 40 pins |
| Input Volt | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| Applikatioun | HHP |
