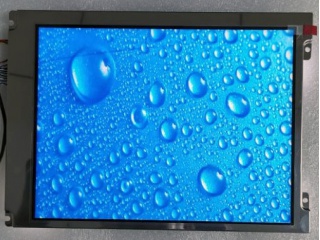

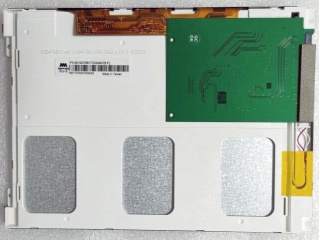

| Part Number | AM-1024768V1TZQW-A0H |
| Mark | AMPIRE |
| Gréisst | 8.4 |
| Applikatioun | Industrial |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AMPIRE |
| Modell | AM-1024768V1TZQW-A0H |
| diagonal Gréisst | 8.4 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×768 [XGA] 152PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 170.8(H)×128.1(V) mm |
| kontur dim. | 203(H)×145.5(V) ×8(D) mm |
| bezel Beräich | 174.15(H)×131.2(V) mm |
| Behandlung | - |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M |
| Liichtquell | WLED [6S6P] , 50K hours , With LED Driver |
| Gewiicht | - |
| entworf fir | Industrial |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C |
