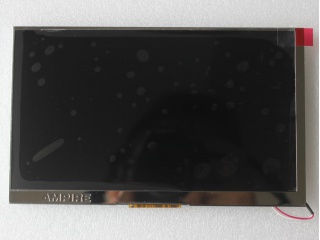

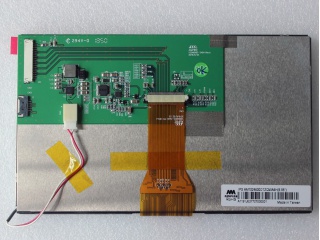

| Part Number | AM-1024600DTZQW-A6H |
| Mark | AMPIRE |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | AMPIRE |
| Modell Numm | AM-1024600DTZQW-A6H |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×600 (WSVGA) 170PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 154.221 × 85.92 (H×V) |
| Kontur (mm) | 164.9 × 100 (H×V×D) |
| Bezel Beräich (mm) | 158 × 89.7 (H×V) |
| Behandlung | Antiglare |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 13/15 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| mass | - |
| benotzt fir | Industrial Outdoor High Brightness |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
