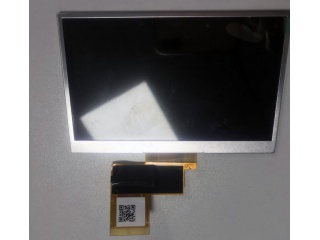

| Part Number | ZJ043NA-01M |
| Mark | Innolux |
| Gréisst | 4.3 |
| Applikatioun | Video Door Phone MP3 |
| Opléisung | 480×272 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S1P WLED , No Driver |
| Interface | |
| Fabrikant beschwéiert | Innolux |
| Modell Numm | ZJ043NA-01M |
| Écran Gréisst | 4.3 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 480(RGB)×272 (WQVGA) 128PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 95.04 × 53.856 (H×V) |
| Kontur (mm) | 105.5 × 67.2 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Äntwert | 10/15 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 43.3g (Typ.) |
| benotzt fir | Video Door Phone MP3 PMP |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| 43WVF2A | SII | 4.3 | 480×800 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LB043WQ3-TD01 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD03 | LG Display | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| LT043MDY5000 | TOSHIBA | 4.3 | 720×1280 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
