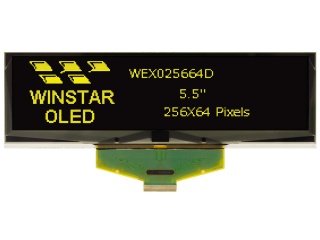

| Part Number | WEX025664DL |
| Mark | Winstar |
| Gréisst | 5.5 |
| Applikatioun | Industrial Handheld |
| Opléisung | 256×64 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | Winstar |
| Panel Modell | WEX025664DL |
| Panel Gréisst | 5.5" |
| Panel Typ | PM-OLED, OLED |
| Resolutioun | 256×64, 47PPI |
| Pixel Format | Rectangle |
| Affichage Beräich | 135.65(W)×33.89(H) mm |
| bezel Ouverture | 137.65(W)×35.89(H) mm |
| Kontur Gréisst | 146(W)×45(H) mm |
| Uewerfläch | - |
| Vue Wénkel | - |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | - |
| weisen Faarwen | Mono(Yellow) |
| Lampe Typ | self |
| Frequenz | - |
| Touchscreens | Without |
| Chauffeur ic | TAB Built-in SSD1322UR1 |
| Panel Gewiicht | - |
| Applikatioun | Industrial Handheld & PDA |
| Signal Interface | CPU/SPI , 30 pins FPC |
| Input Volt | 3.0V (Typ.) |
| Ëmwelt | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
