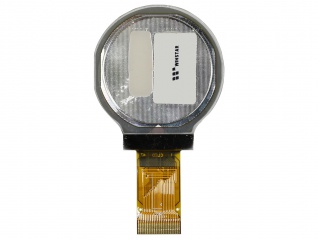

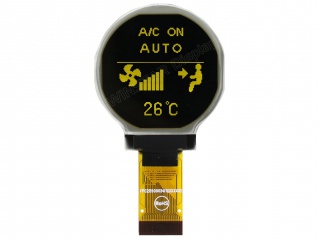

| Part Number | WEO128128BL |
| Mark | Winstar |
| Gréisst | 1.2 |
| Applikatioun | Wearable Round Displ |
| Opléisung | 128×128 |
| Zesummesetzung | PM-OLED , OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Winstar |
| diagonal Gréisst | 1.2 inch |
| Pixel Format | 128×128 108PPI |
| aktiv Beräich | 30(H)×30(V) mm |
| Vue Richtung | Symmetry |
| Vue Wénkel | - |
| Ënnerstëtzung Faarf | Mono(Yellow) |
| Gewiicht | - |
| Frame Taux | - |
| d-ic detail | COG Built-in SSD1327ZB |
| Interface Typ | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| Stroumversuergung | 3.0V (Typ.) |
| Ëmwelt | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| Modell | WEO128128BL |
| Typ | PM-OLED , OLED |
| Configuratioun | Rectangle |
| kontur dim. | 36.98(H)×41.23(V) ×2.25(D) mm |
| Äntwert Zäit | - |
| Betribssystemer Modus | - |
| Liichtquell | self |
| entworf fir | Wearable Round Display |
| Touch Panel | Without |
