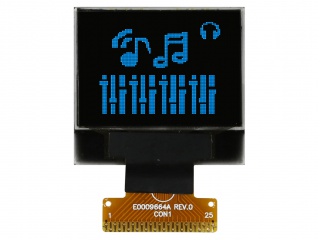

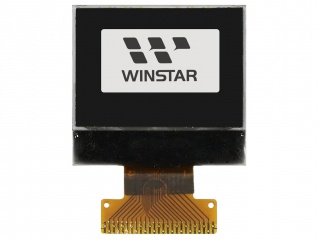

| Part Number | WEO009664AB |
| Mark | Winstar |
| Gréisst | 0.95 |
| Applikatioun | Wearable MP3 PMP |
| Opléisung | 96×64 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Blue) |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Winstar |
| Modell | WEO009664AB |
| diagonal Gréisst | 0.95 inch |
| Typ | PM-OLED, OLED |
| Pixel Format | 96×64 121PPI |
| Configuratioun | Rectangle |
| aktiv Beräich | 19.946(H)×13.418(V) mm |
| kontur dim. | 24.9(H)×22.95(V) ×1.95(D) mm |
| bezel Beräich | 21.953(H)×15.424(V) mm |
| Behandlung | - |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Blue) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Wearable MP3 PMP |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COG Built-in SSD1305Z |
| Interface Typ | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 25 pins FPC |
| Stroumversuergung | 3.0V (Typ.) |
| Ëmwelt | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
